AMS ALP.07.07.0010-2 Fuel System (Dual Pumps) for NISSAN GT-R (R35)

Description AMS ALP.07.07.0010-2 Fuel System (Dual Pumps) for NISSAN GT-R (R35)

The Omega Brushless Fuel Pump System was developed to address the fueling challenges commonly experienced by GT-R owners. Previous fuel pump solutions for the GT-R often required bulky, difficult-to-install, and noisy multi-pump setups prone to fuel starvation due to pressure loss from overheating. After more than two years of research and testing, this system provides a comprehensive fueling solution for the R35 GT-R.

The Omega system is available in single (up to 1200whp) or dual (over 1200whp) brushless pump configurations. Brushless motors generate less heat and avoid the friction and wear associated with brushed motors, resulting in lower fuel temperatures and improved reliability. The pumps use OE quality brushless motors and automotive-grade controllers for optimal performance.

Overheating of fuel inside the tank can lead to fuel boiling and reduced pump output, causing lean conditions and potential engine damage. The Omega Brushless Fuel Pump features a screw-style pumping mechanism, which maintains high fuel output even at elevated temperatures, unlike traditional vane or impeller pumps.

This pump delivers high flow and consistent fuel pressure under demanding conditions. It operates with reduced noise and fits neatly within the stock fuel tank, retaining all factory fuel system functionality. The included controller allows users to customize fuel output via a simple graphic user interface, supporting basic, intermediate, and advanced tuning methods.

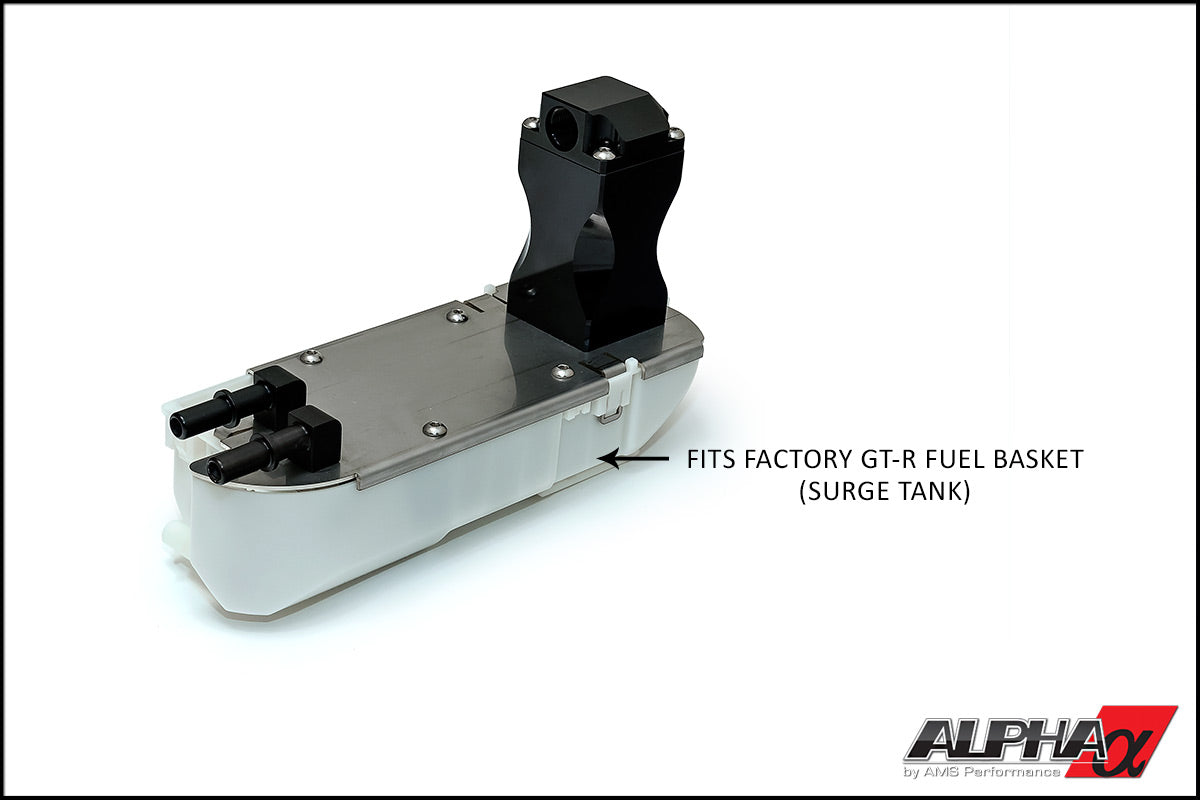

The Omega system integrates with the factory saddle-style fuel system and surge tank, enhancing protection against fuel starvation during hard driving. The system has been tested on some of the fastest Alpha-powered GT-Rs and is designed for easy expansion if additional fueling capacity is needed.

• Brushless motor design reduces heat and fuel temperature
• Screw-style pump maintains high output under elevated temperatures
• Compact, easy-to-install design fits in the stock fuel tank
• Customizable fuel output with user-friendly controller interface

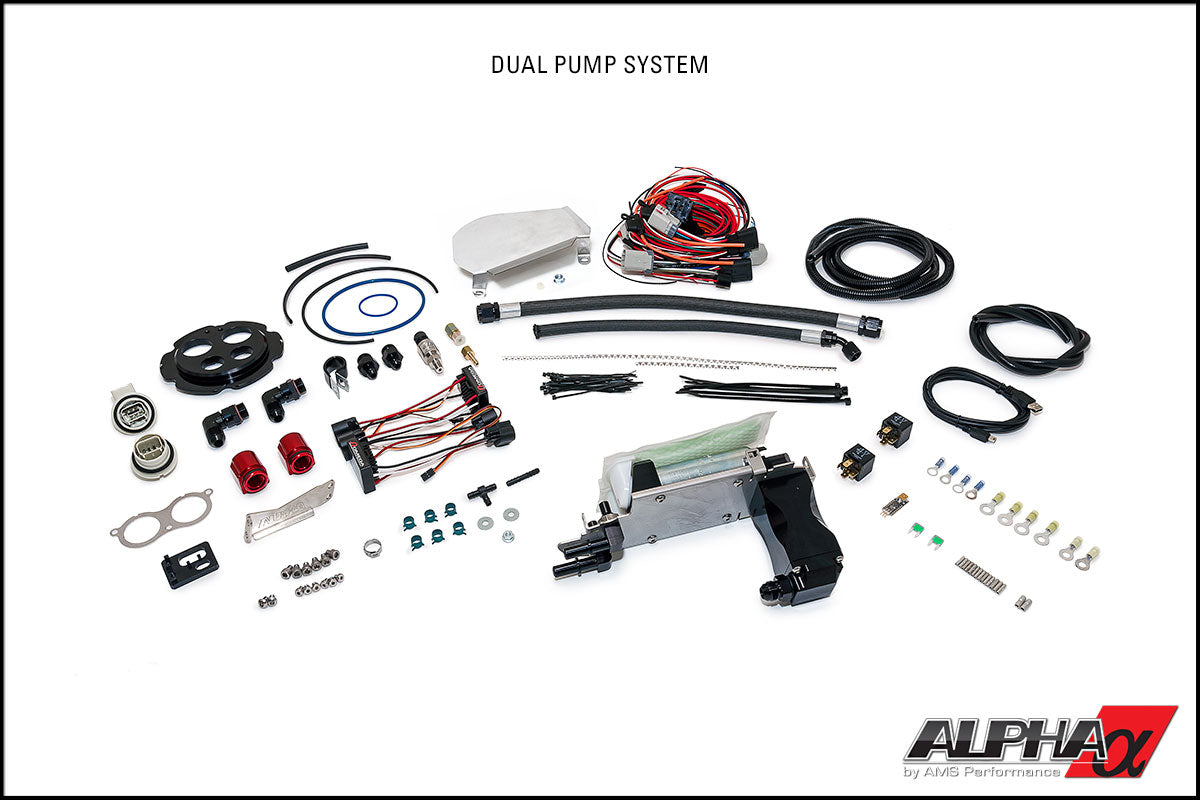

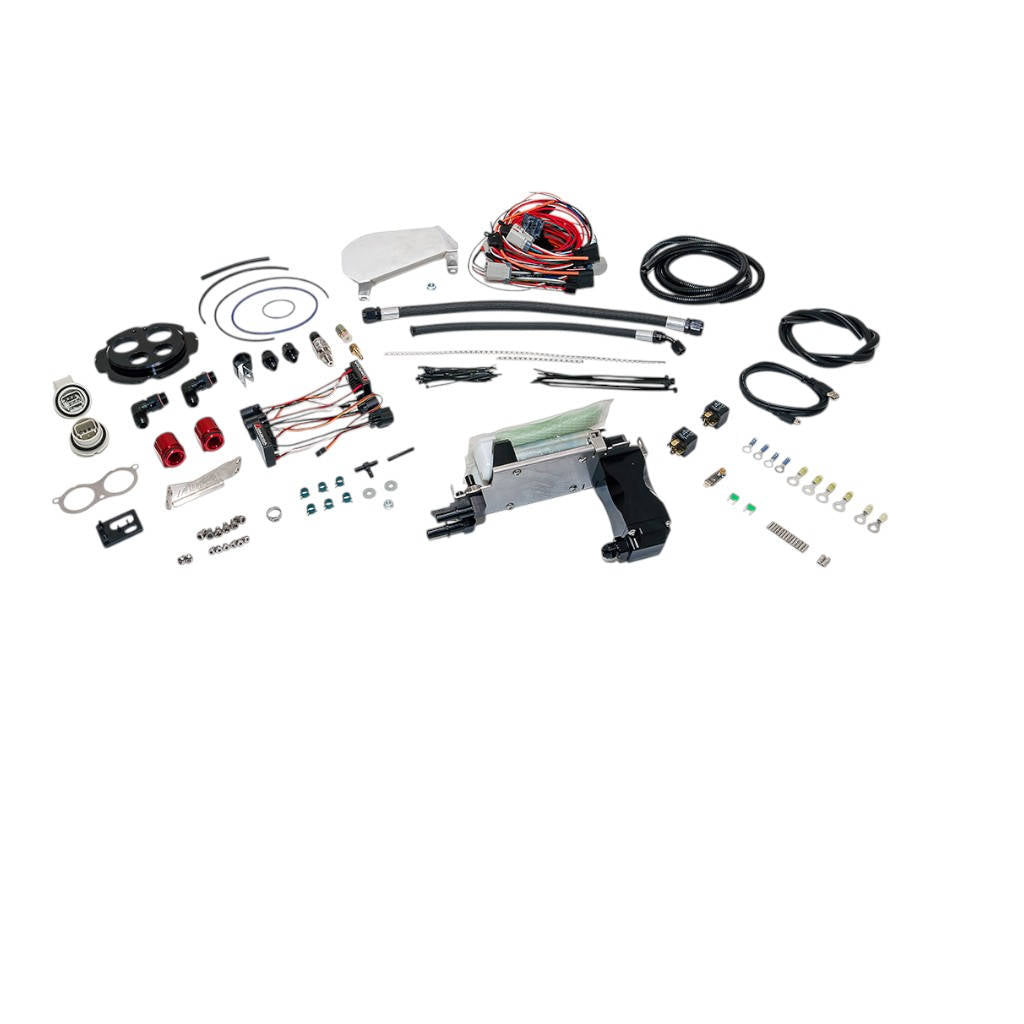

Kit comes with:

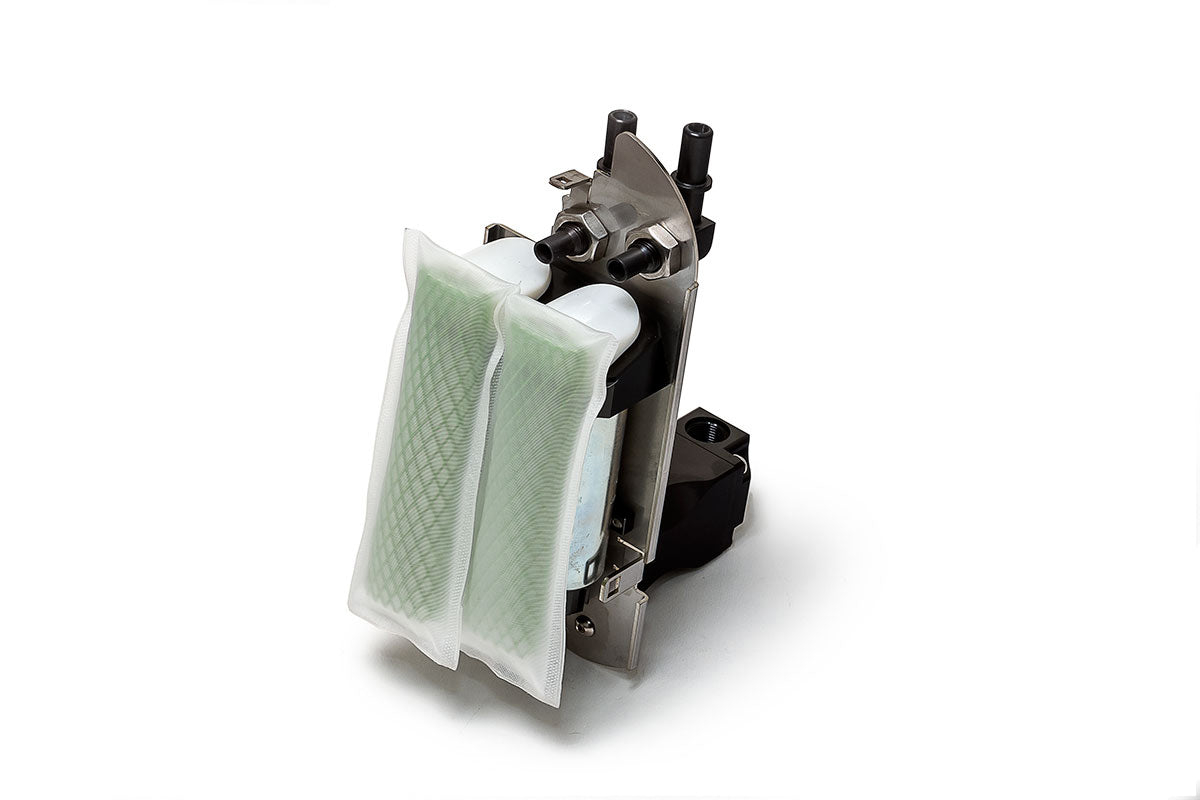

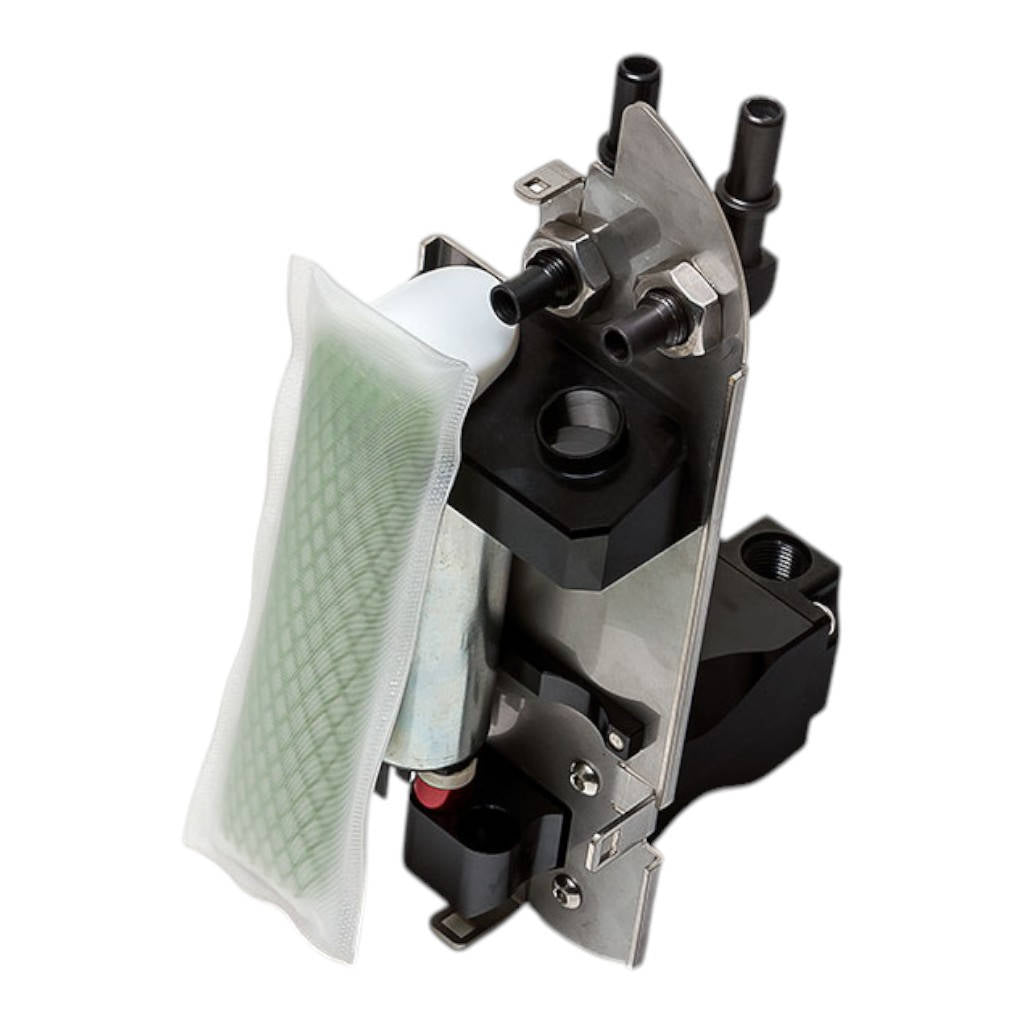

• Billet fuel pump filter housing with pump installed and assembled
• Wire harnesses
• 3.5 Bar MAP sensor
• Fuel pump controller
• USB interface
• USB thumb drive with software and detailed instructions
• Inside tank hoses
• Replaceable Fuel Filters: Pre-pump filter socks (Walbro 125-118) and post-pump 6 micron filter (Fuelab 71804)
• All necessary hardware and fittings to install

Vehicle Compatibility:

• 2009+ Nissan R35 GT-R (USDM, JDM, European Models, LHD & RHD)
