AMS ALP.07.07.0010-1 Fuel System (Single pump) for NISSAN GT-R (R35)

Description AMS ALP.07.07.0010-1 Fuel System (Single pump) for NISSAN GT-R (R35)

The Omega Brushless Fuel Pump System was developed to address common fueling issues experienced by GT-R owners. Traditional fuel pump options for the GT-R often involve bulky, loud, and difficult-to-install multi-pump setups that can suffer from fuel starvation due to pressure loss and overheating. After more than two years of research and testing, this system provides a comprehensive solution for R35 GT-R fueling needs.

The Omega system is available in single (up to 1200whp) and dual (over 1200whp) brushless pump configurations. Brushless motors generate less heat and experience less wear compared to brushed motors, resulting in lower fuel temperatures and greater reliability. The system uses OE quality brushless motors and automotive-spec controllers to optimize output and reduce fuel temperature, helping to protect the VR38 engine from overheating and fuel starvation.

The screw style pumping mechanism maintains high fuel output even under elevated fuel temperatures, unlike traditional vane or impeller pumps. The Omega Pump is compact, easy to install in the stock tank, and quieter than typical aftermarket pumps. The system retains all factory fuel system functions and integrates with the original “surge tank” to prevent fuel starvation during hard cornering and acceleration.

The included controller offers a user-friendly interface for custom tuning, with options for basic, intermediate, and advanced output control. The system supports up to 1200whp with a single pump and can be expanded by adding a second pump if needed. It has been tested and proven on some of the fastest Alpha-powered GT-Rs.

• Brushless motor reduces heat and wear, lowering fuel temperature
• Screw style pump maintains high flow and pressure at elevated temperatures
• Compact design fits in the stock tank and retains factory fuel system functions
• User-friendly controller allows for custom tuning and easy system expansion

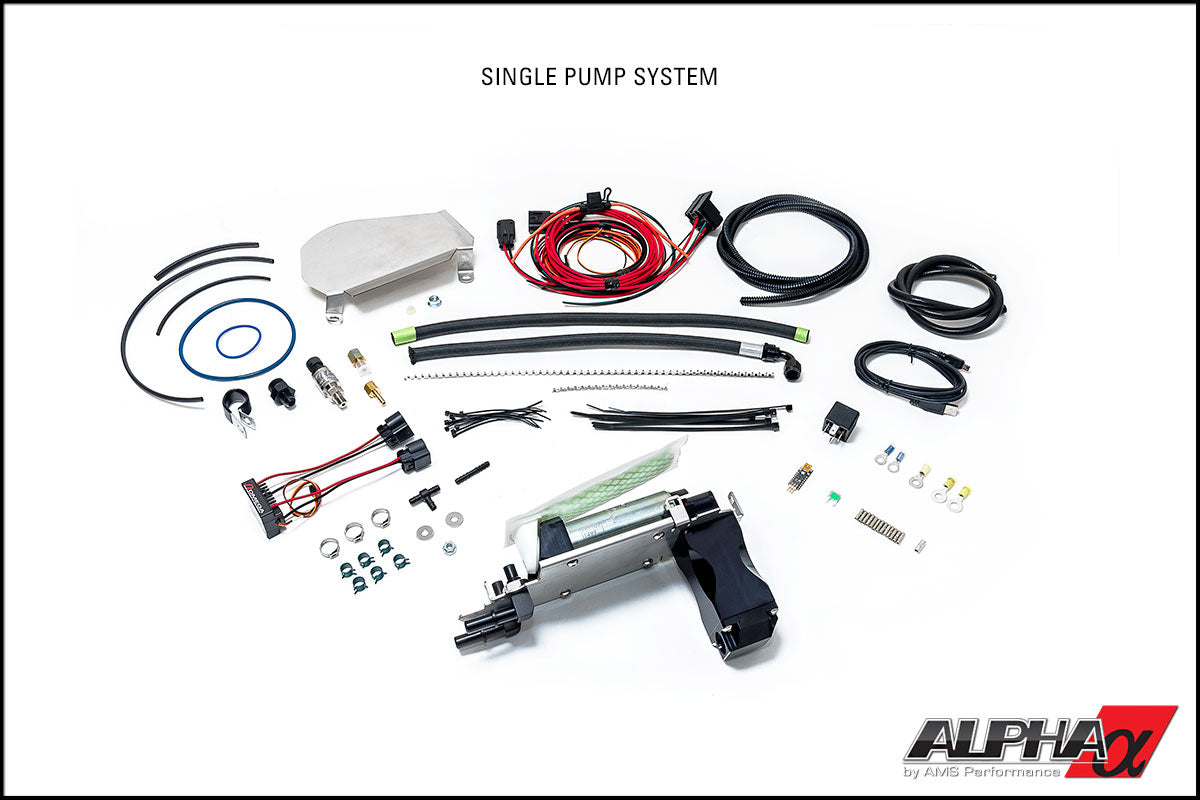

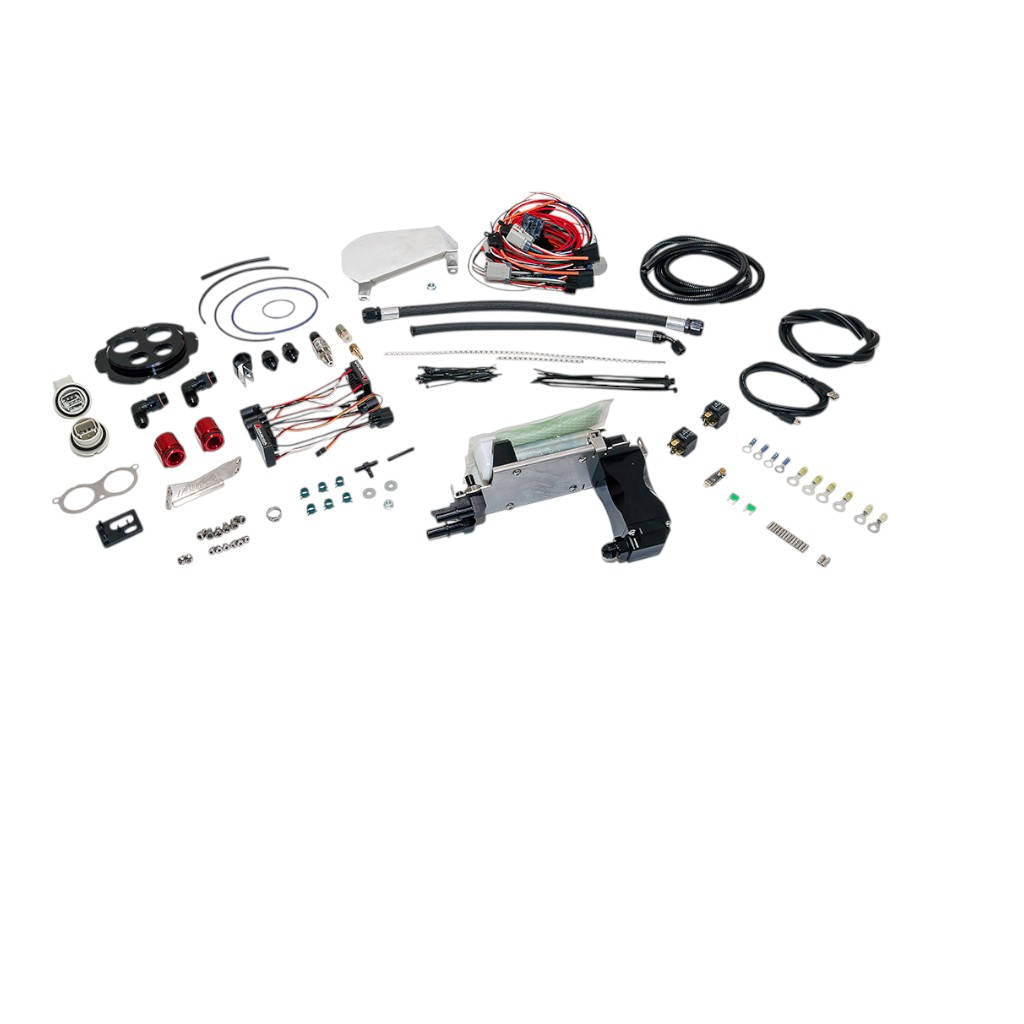

Kit comes with:

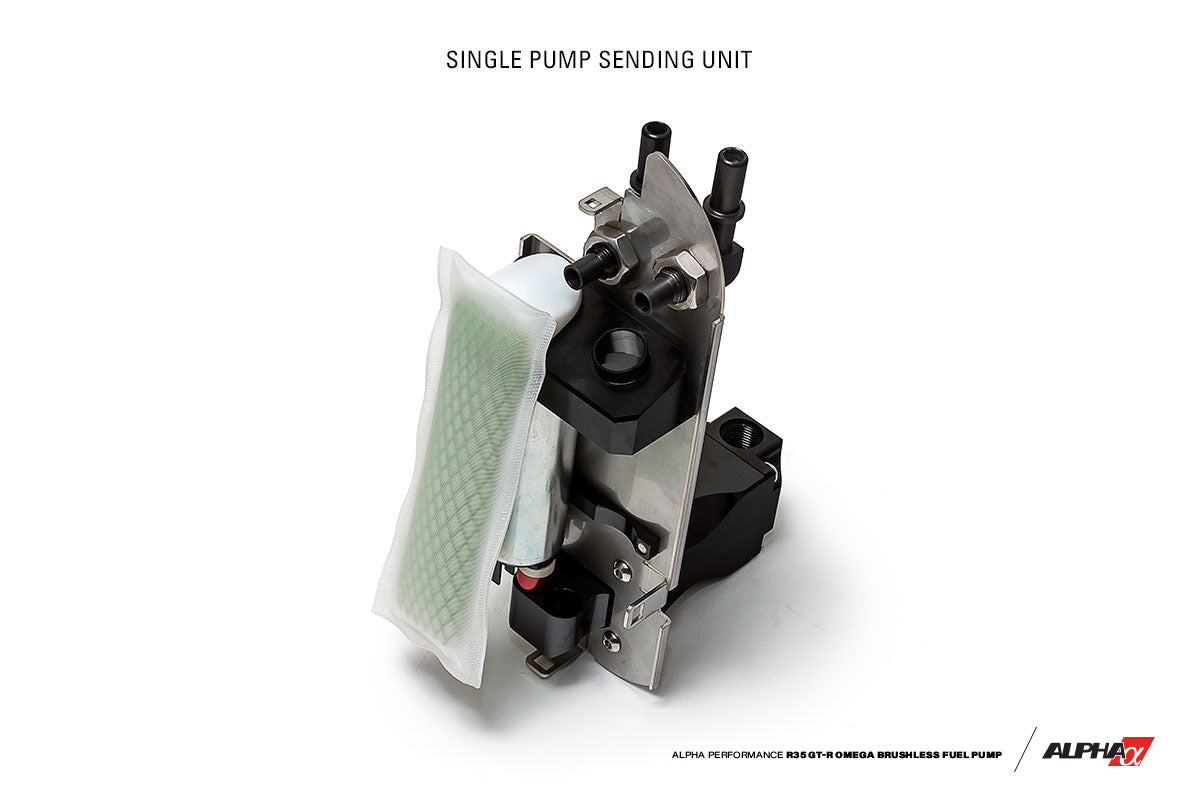

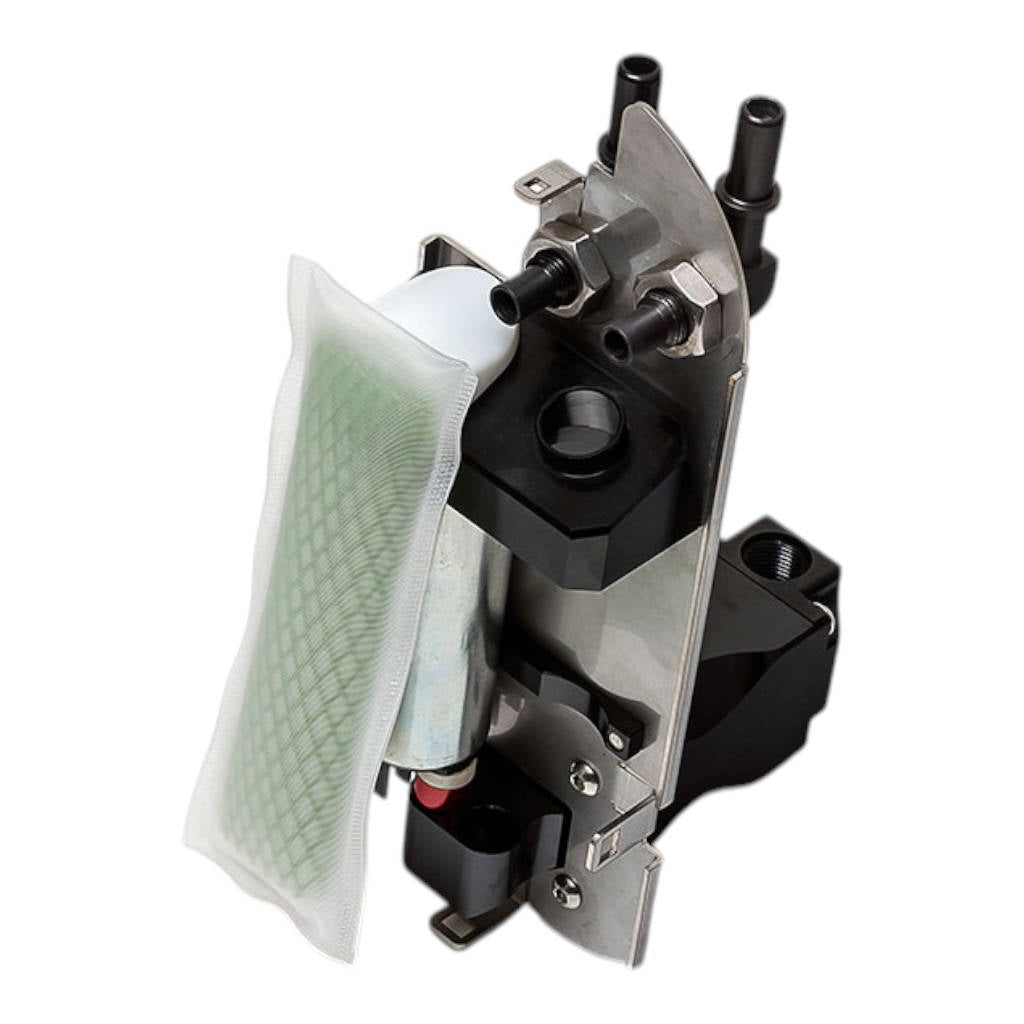

• Billet fuel pump filter housing with pump installed and assembled
• Wire harnesses
• 3.5 Bar MAP sensor
• Fuel pump controller
• USB interface
• USB thumb drive with software and detailed instructions
• Inside tank hoses
• Replaceable Fuel Filters: Pre-pump filter socks (Walbro 125-118) and post-pump 6 micron filter (Fuelab 71804)
• All necessary hardware and fittings to install

Vehicle Compatibility:

• 2009+ Nissan R35 GT-R (USDM, JDM, and European Models, LHD & RHD)
