AMS ALP.07.05.0006-1 Midpipe w / Race Cats (90mm Exit) for NISSAN GT-R (R35)

Description AMS ALP.07.05.0006-1 Midpipe w / Race Cats (90mm Exit) for NISSAN GT-R (R35)

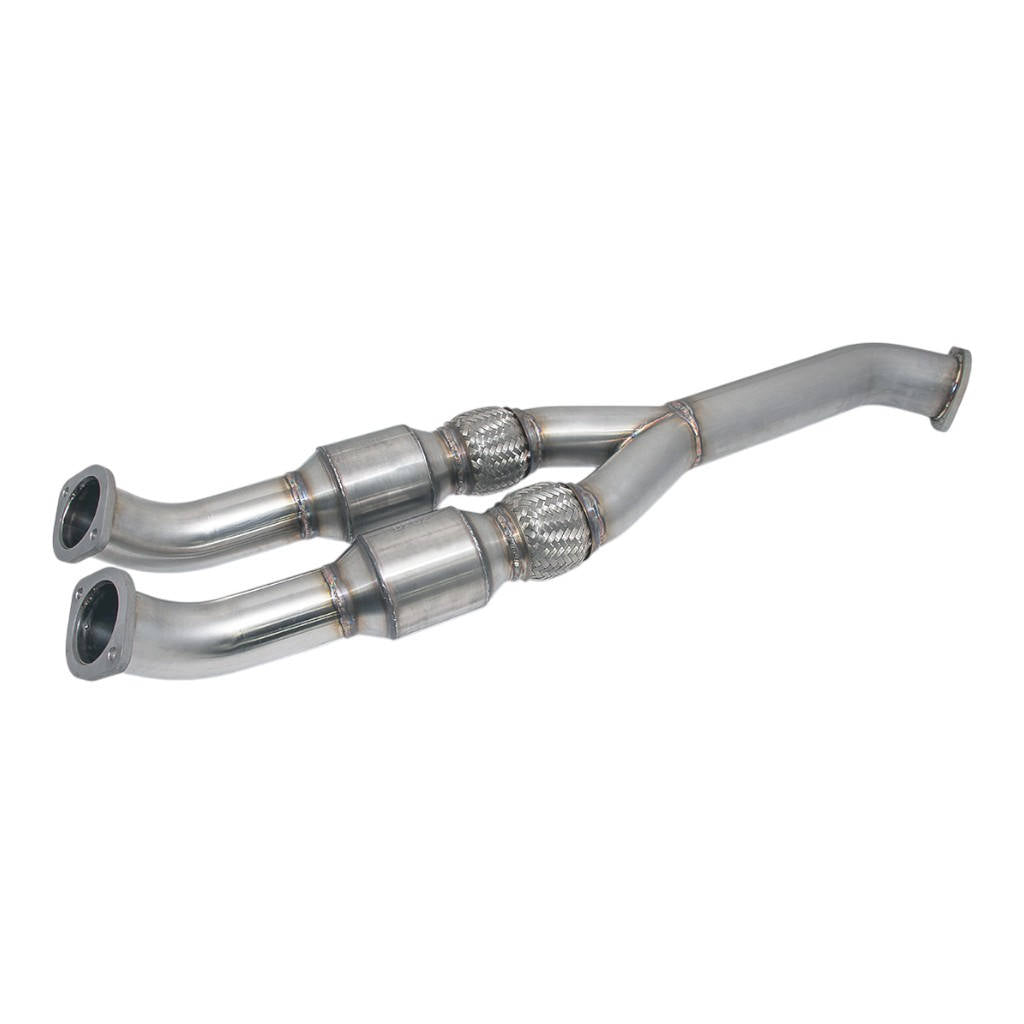

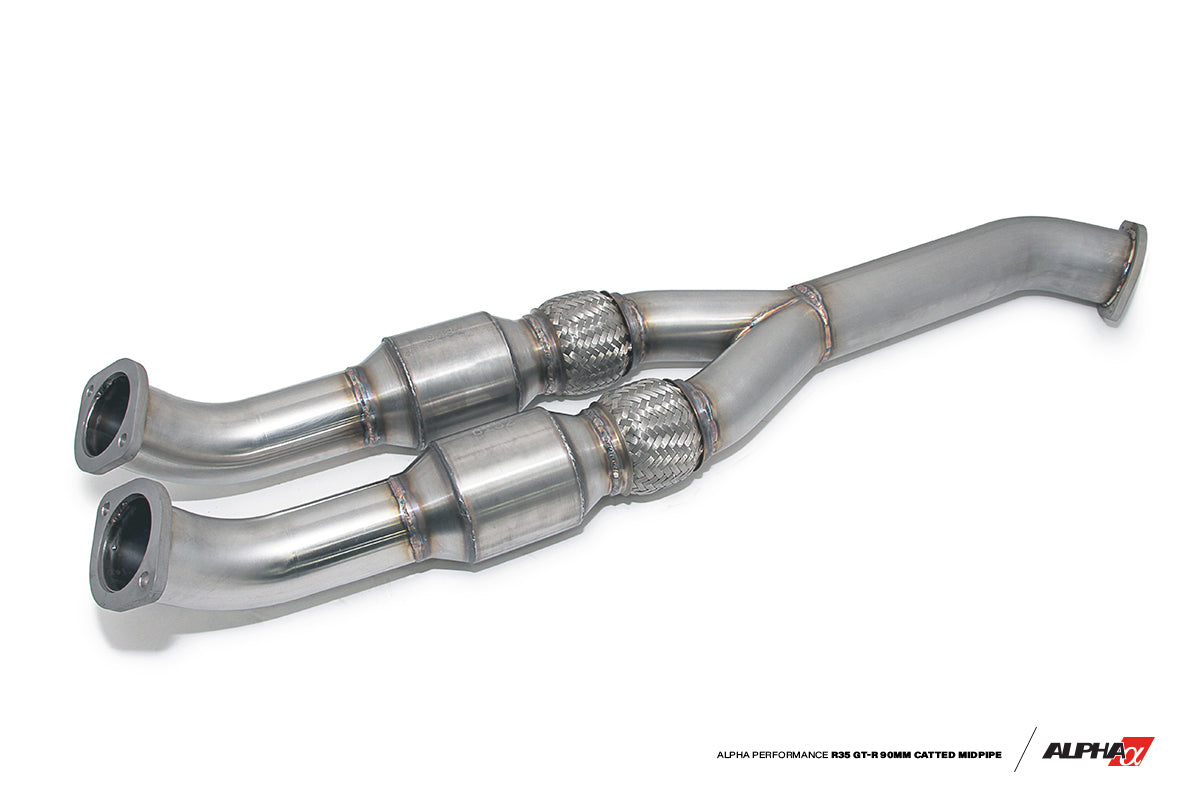

The Alpha R35 GT-R 90mm Catted Midpipe is designed as one of the largest midpipes available for the Nissan GT-R. Unlike most systems that use two 76mm (3”) pipes merging into a single 76mm (3”) pipe, this midpipe features a larger 90mm (3.5”) primary pipe to improve exhaust gas flow. This design reduces turbulence and back pressure, resulting in increased horsepower and enhanced turbo response.

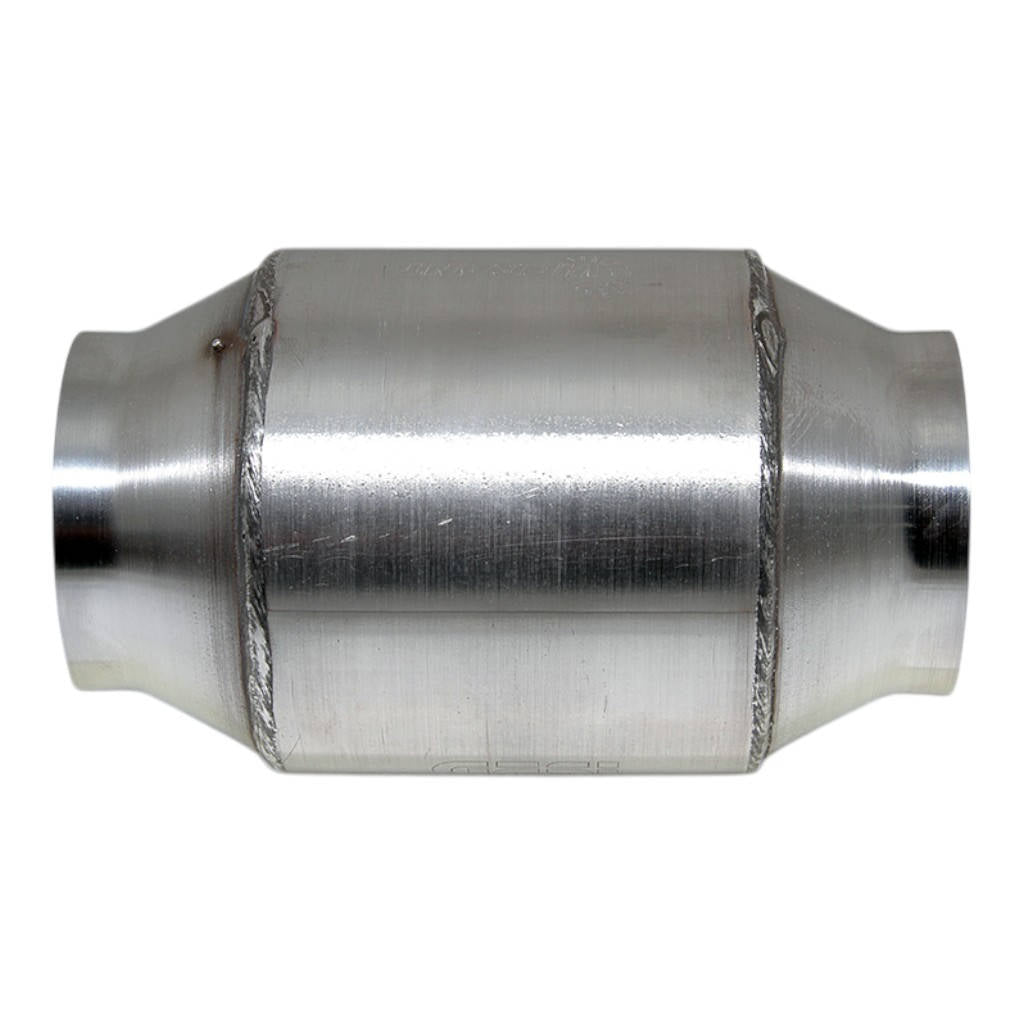

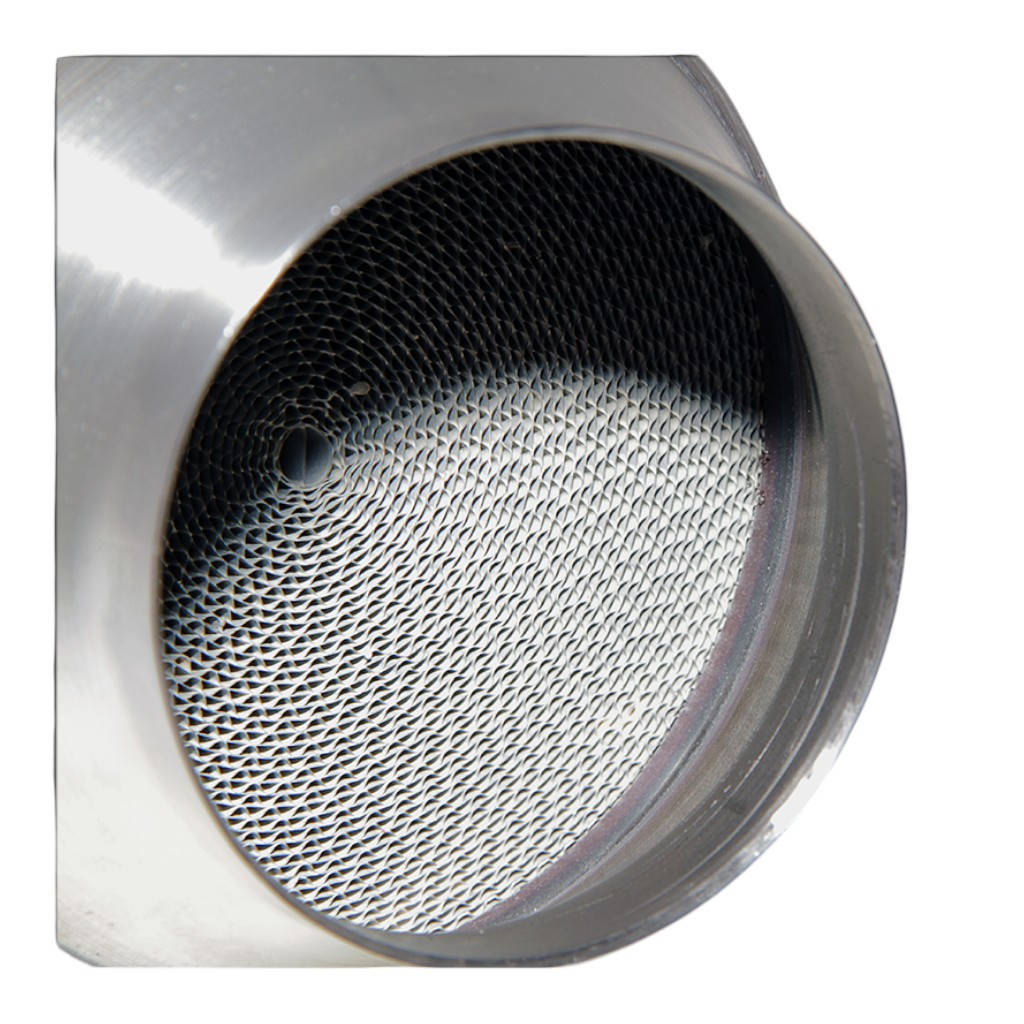

To ensure compliance with state and local emissions regulations, the midpipe incorporates high flow catalytic converters that are EPA certified in 49 states. These GESI Ultra High Output (UHO) stainless steel cats provide a high level of emissions control with no significant loss in horsepower compared to a cat-less midpipe. The catalytic converters are engineered to withstand up to 1500 degrees F and are built for durability under severe driving conditions.

Each Alpha R35 GT-R 90mm Catted Midpipe is constructed from high quality stainless steel and hand TIG welded for superior fit, finish, and performance. The design includes premium stainless steel flex sections and 3/8” thick connecting flanges, ensuring long-lasting reliability.

• Large 90mm (3.5”) primary section optimizes exhaust flow
• GESI Ultra High Output race catalytic converters for forced induction applications
• Precision TIG welded stainless steel construction
• Stock-like fitment with no ground clearance issues

Specifications:

• Material: 100% 304 stainless steel with .049” wall thickness
• Inlets: Twin 76mm (3”) Y into 90mm (3.5”) primary pipe
• Flex Sections: Twin 76mm (3”) stainless steel flex sections
• Catalytic Converters: Twin 76mm (3”) stainless steel
• Flanges: 3/8″ thick stainless steel

Kit comes with:

• 90mm midpipe
• Gaskets and hardware

Vehicle Compatibility:

• 2009-up Nissan GT-R (all USDM, European, and JDM models)
