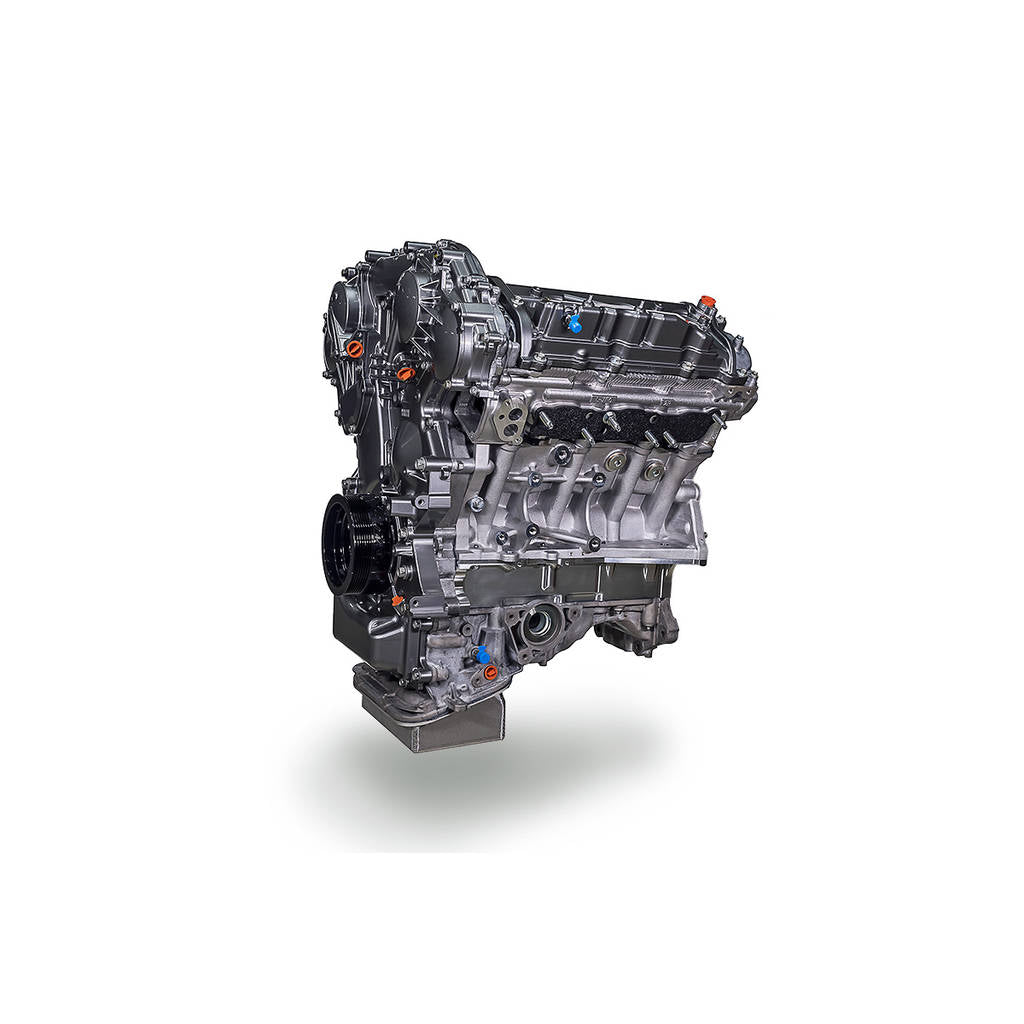

AMS ALP.07.04.0500-1 Long Block Stage 0 3.8L VR38 for NISSAN Z (RZ34) 2022-

Description AMS ALP.07.04.0500-1 Long Block Stage 0 3.8L VR38 for NISSAN Z (RZ34) 2022-

The AMS Performance 3.8L VR38 Stage 0 Long Block is designed for high horsepower builds in the Nissan GTR. This fully assembled long block is crafted with precision machining using advanced in-house equipment. Each AMS built engine is strategically strengthened to support the power and torque produced by OMEGA and ALPHA performance packages.

Assembled in a temperature and humidity controlled clean room, every detail is meticulously crafted. The long block comes complete from valve covers to oil pan to timing chain and components, making installation straightforward. AMS proprietary engine components and strict quality control ensure a reliable foundation for high power applications.

Note: Horsepower and torque numbers, and RPM limits are approximate and can vary significantly depending on numerous factors such as turbocharger selection, intake and exhaust restriction/backpressure, and fuel octane and quality, among many others. The advertised numbers herein are based on optimal conditions and utilizing proper supporting modifications, but are generally attainable results by an average customer. Your results may vary.

Note: In rare cases, component selection may vary from advertised based on supply chain delays. All component substitutions will be communicated in advance by your AMS Sales Representative during the engine assembly process.

Note: Assumes that a good condition core long block is sent in to build from. To avoid confusion and the possibility of missing parts, all long blocks should be shipped fully assembled from valve covers to oil pan, including timing covers and crank pulley. Components that are not in reusable condition will have replacements quoted during the engine assembly process.

• Fully assembled long block ready for manifolds and accessories
• Precision machining with advanced industry leading equipment
• Assembled in a temperature and humidity controlled clean room
• Utilizes existing engine as a core to build from

Specifications:

• Displacement: 3.8 liters
• Bore: 95.5 mm (Grade 1, 2, or 3 varies)
• Stroke: 88.4 mm
• Appx. Compression Ratio: 9.5:1
• Recommended Rev Limit: 7500 RPM*
• Recommended Max Power & Torque: 900 WHP / 800 lb-ft*

Kit comes with:

• AMS Stage 0 Short Block
• OEM+ Recondition and Rebuild
• Inspect and Blueprint Engine Block
• Manley Connecting Rods to AMS Spec
• Manley Pistons to AMS Spec
• OEM Crankshaft Inspection and Magnaflux
• OEM Crankshaft Polish and Full Balance Job
• King Main Bearings
• New OEM Rods Bearings
• New OEM Seals and Gaskets
• New OEM Hardware
• Cometic Head Gaskets
• AMS Billet Deep Oil Pan
• AMS Stage 0 Head Package
• Cylinder Head Recondition, Clean, Reassemble
• OEM Valve Job
• Deck / Resurface
• Shim and Set Valve Lash
• Ferrea Valve Seals
• Reuses All OEM Cams and Valve Parts

Vehicle Compatibility:

• 2009-2011 (CBA) Nissan R35 GT-R
• 2012-2016 (DBA) Nissan R35 GT-R
• 2017-2019 (Facelift DBA / “EBA”) Nissan R35 GT-R
• 2020-Current (4BA) Nissan R35 GT-R
• Fits all USDM, JDM, Gulf, and European Models (LHD & RHD)
