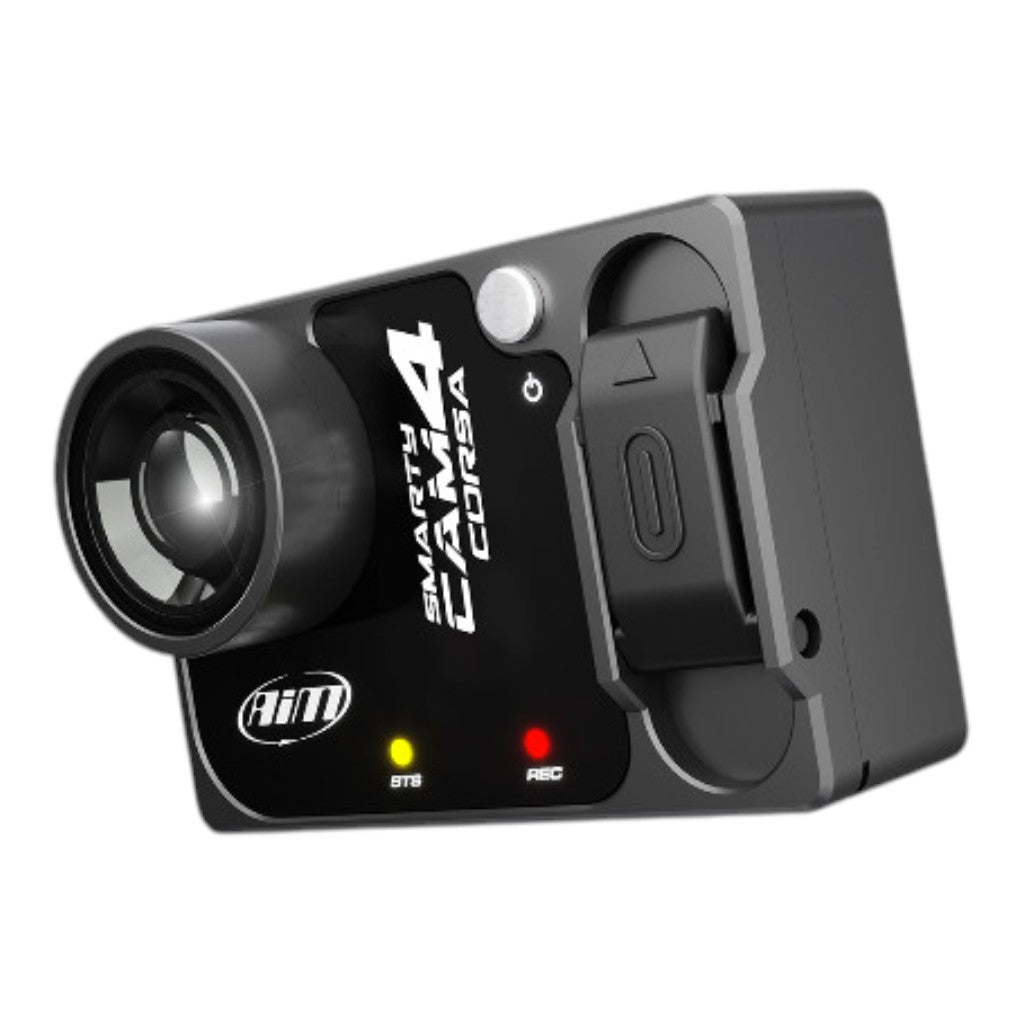

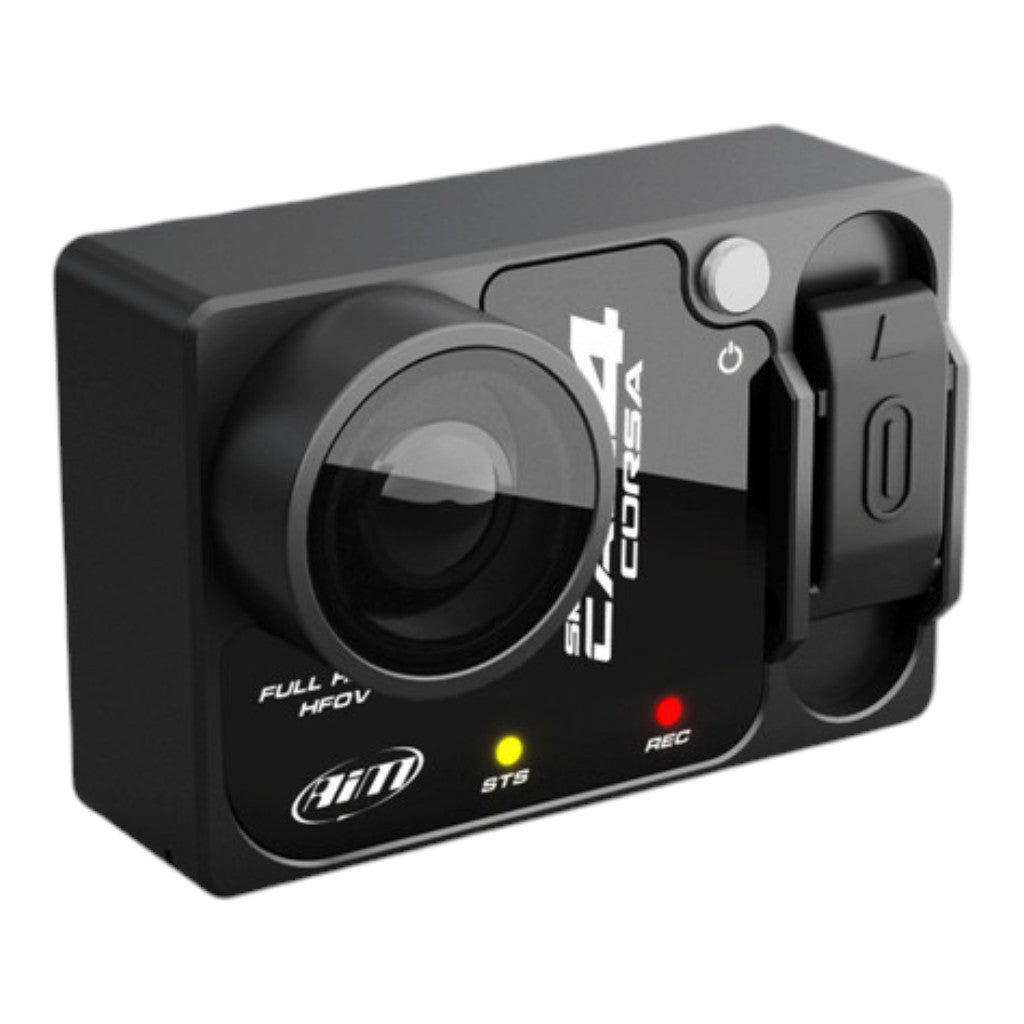

AIM XS4CRFHD08501E Motosport Camera Kit SmartyCam 4 Corsa (85 Angle Lens)

Description AIM XS4CRFHD08501E Motosport Camera Kit SmartyCam 4 Corsa (85 Angle Lens)

The AIM XS4CRFHD08501E SmartyCam 4 Corsa is an onboard motorsport camera kit designed for touring cars, sports cars and track applications. Equipped with an 85° low-distortion lens and a 12 MP Sony CMOS sensor, the camera records Full HD video with real-time telemetry overlays. The system combines video recording, ECU data acquisition and internal data logging to support driving analysis and vehicle monitoring.

SmartyCam 4 Corsa integrates a dedicated image signal processor (ISP) and Sony LSI electronic image stabilization, including horizon correction, lens distortion correction and vibration compensation. Video is recorded at 1920 × 1080 pixels with selectable 30 or 60 fps frame rates and H.264/H.265 compression. An internal LiPo battery, external 9–15 V power input and automatic recording start and stop support operation during track sessions.

The camera receives data from compatible ECUs through CAN and supports integration with AiM GPS modules and data loggers. Speed, RPM, lap and sector times, sensor channels and other available parameters can be displayed directly on recorded footage. RaceStudio 3 enables configuration of telemetry overlays, graphic layouts, logos and circuit maps. Recorded data can also be used for lap-by-lap analysis and side-by-side video comparisons. ECU Driver Builder provides support for creating configurations for ECUs not included in the existing protocol database.

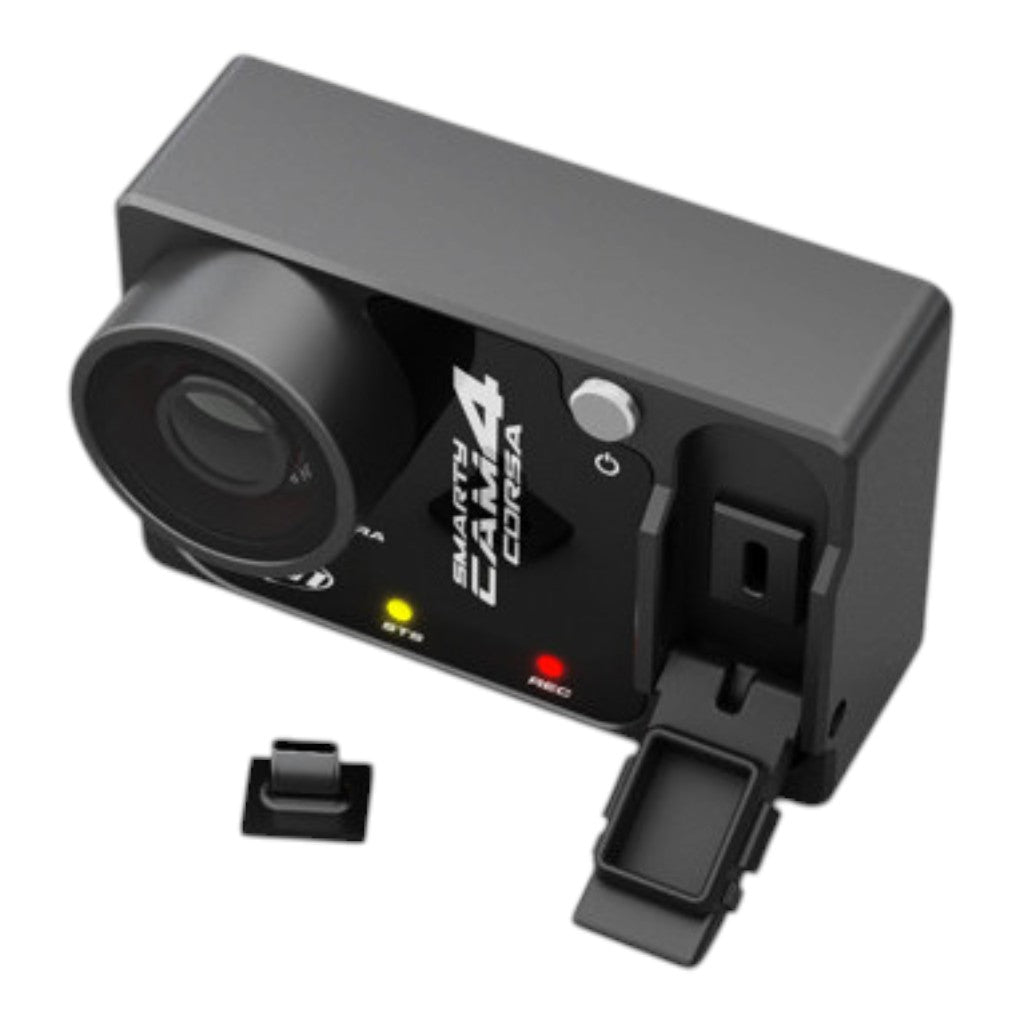

The housing is manufactured from CNC-machined anodized aluminum and incorporates a sapphire glass front element. The IP65-rated construction is intended for exposure to vibration, dust and water during motorsport use. A USB-C interface supports configuration, live-view framing, track updates and removable memory storage. The supplied kit includes a 64 GB USB-C memory drive, battery charger with AC adapter, a 400 cm CAN cable and a 200 cm USB 2.0 Type-A to Type-C cable.

• 85° low-distortion lens for onboard motorsport video recording
• 12 MP Sony CMOS sensor with dedicated ISP
• Full HD recording at 1920 × 1080 pixels and 30/60 fps
• Sony LSI electronic stabilization with horizon correction and vibration compensation
• Configurable real-time overlays for GPS, ECU and data logger information
• CAN ECU connectivity with extensive protocol support and ECU Driver Builder
• Integrated data logging with recorded channels stored alongside video
• RaceStudio 3 software for overlay customization and session analysis
• Side-by-side lap video comparison and automatic lap splitting
• Automatic recording start and stop
• Automatic circuit detection when connected to an AiM GPS module
• USB and Wi-Fi connectivity for streaming and configuration functions
• Mobile configuration through the RaceStudio 3 app for iOS and Android
• CNC-machined anodized aluminum housing with sapphire glass
• IP65-rated protection against dust and water
• 64 GB USB-C memory drive and installation cables included

Specifications:

• Lens Viewing Angle: 85°
• Lens Type: Low-distortion
• Image Sensor: Sony CMOS
• Sensor Resolution: 12 MP
• Image Processing: Dedicated ISP
• Image Stabilization: Sony LSI electronic stabilization
• Video Resolution: 1920 × 1080 pixels (Full HD)
• Frame Rate: 30/60 fps
• Video Compression: H.264/H.265
• Recording File Format: MP4
• Telemetry Overlay: Configurable real-time data overlay
• Data Sources: CAN bus, compatible ECUs, AiM data loggers and GPS modules
• Recorded Parameters: Available speed, RPM, lap times, sector times and sensor channels
• Internal Data Logger: Integrated
• ECU Connection: CAN
• ECU Protocol Configuration: RaceStudio 3 ECU Driver Builder
• Software: RaceStudio 3
• Mobile Application: RaceStudio 3 for iOS and Android
• Automatic Recording: Start and stop
• Automatic Track Detection: Supported with an AiM GPS module
• Streaming Interfaces: USB and Wi-Fi
• Memory Interface: USB-C
• Maximum Supported Memory Capacity: Up to 2 TB
• Included Memory: 64 GB USB-C drive
• External Power Supply: 9–15 V
• Internal Battery: Rechargeable LiPo
• Housing Material: CNC-machined anodized aluminum
• Front Protective Element: Sapphire glass
• Ingress Protection Rating: IP65
• Dimensions: 94 × 63 × 28.7 mm
• Weight: 260 g, including battery
• Included Camera: SmartyCam 4 Corsa with 85° lens
• Included Charger: Battery charger with AC adapter
• Included CAN Cable Length: 400 cm
• Included USB Cable: USB 2.0 Type-A to Type-C
• Included USB Cable Length: 200 cm
