AIM XC1PDM3201 PDM32 with display connector and LVDS Cable

AED 8,344.88

Tax included. Shipping calculated at checkout

AIMP/N: XC1PDM3201
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

AIM XC1PDM3201 PDM32 with display connector and LVDS Cable

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

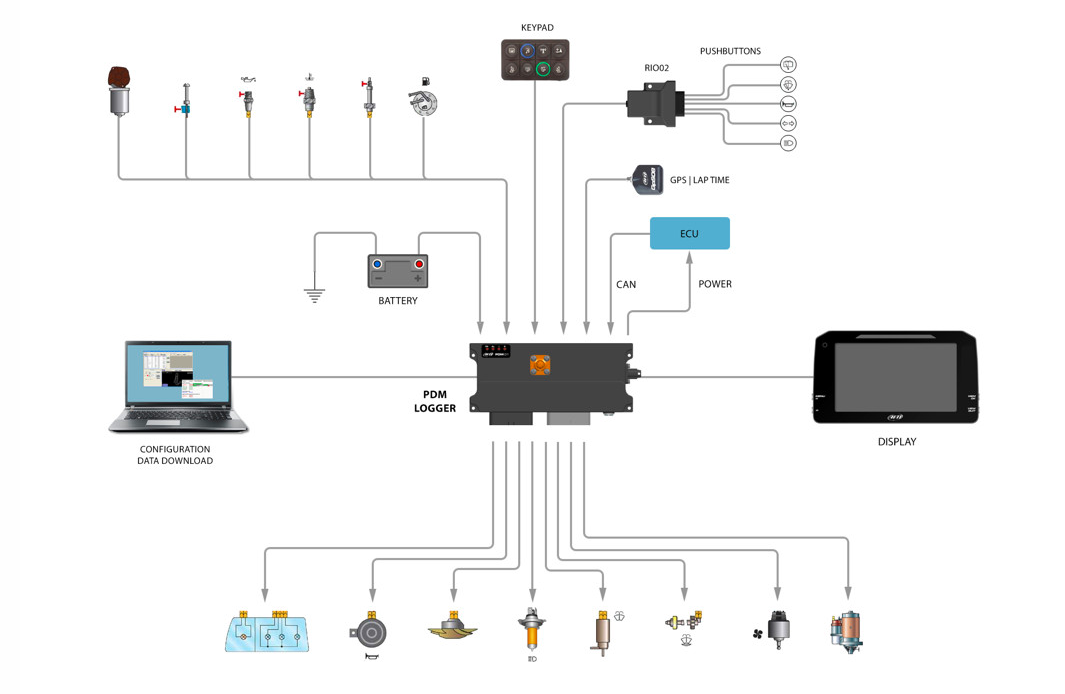

The PDMs offer four different Power Outputs Levels:
Power Outputs PDM32

  • 4 rated up to 20 A (high power)
  • 12 rated up to 15 A (mid power)
  • 12 rated up to 10 A (low power)
  • 4 rated up to 35 A (Half Bridge)
  • Protected for: over voltage, under voltage, over current, over temperature
  • Total max current: 120 A

Each output provides status feedback for open circuit, short circuit, high temperature, over current, under voltage and over voltage.
Inrush current, number of fault retries and the time between retries are all definable.All the outputs may be configurable as PWM and allow soft start/stop.

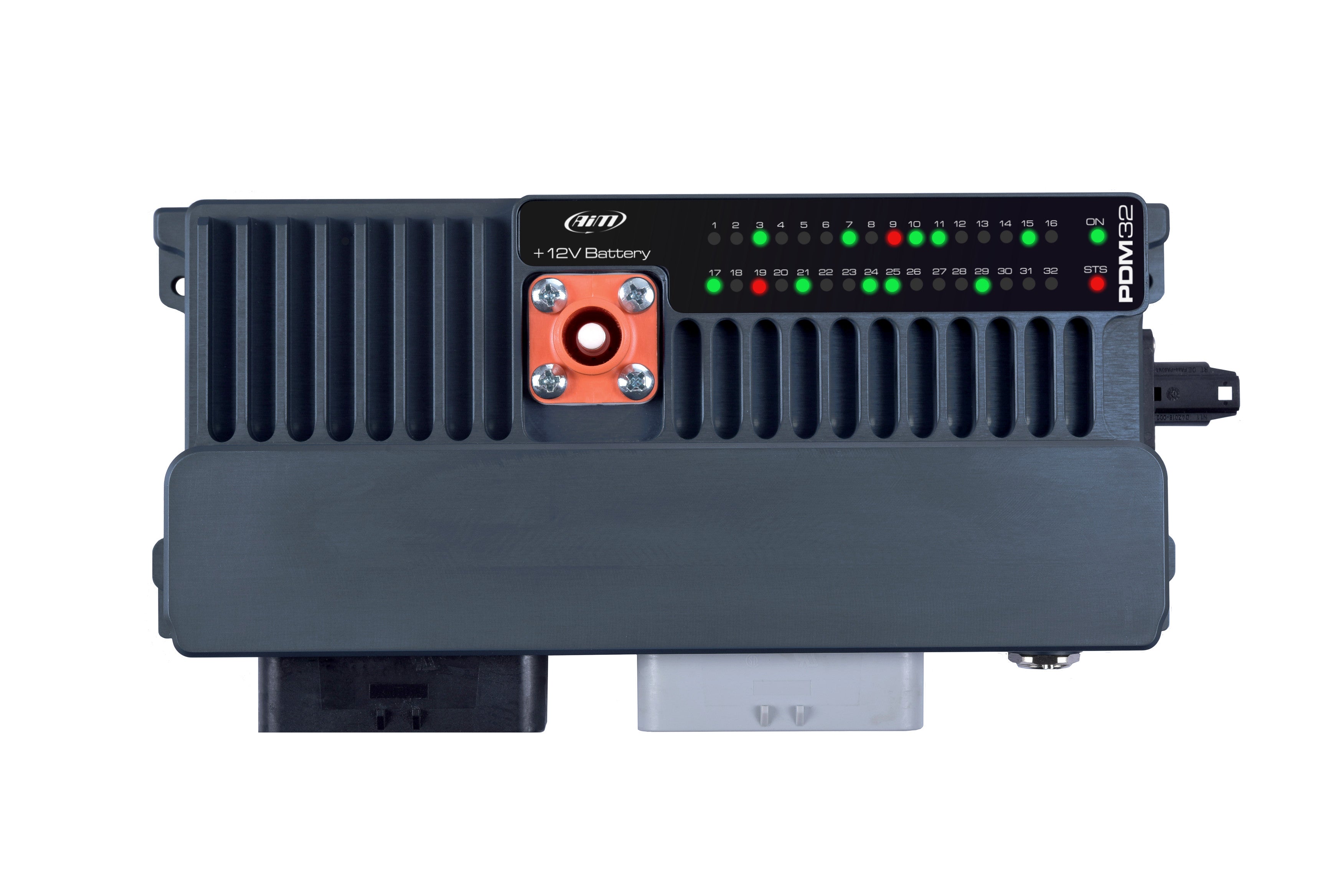

For every output, a multicolor LED shows the status:

  • Enabled/disabled
  • Activated or not
  • Fault

Inputs:
PDM32 feature the following Inputs channels:
  • Analog/Digital - 8
  • Only digital - 4
  • Speed - 2

PDM32 with 28 High Side Outputs and 4 Half Bridge Outputs. Technical sheet can be downloaded here
PDM32 User guide can be downloaded here
PDM32/08 Part numbers can be downloaded here

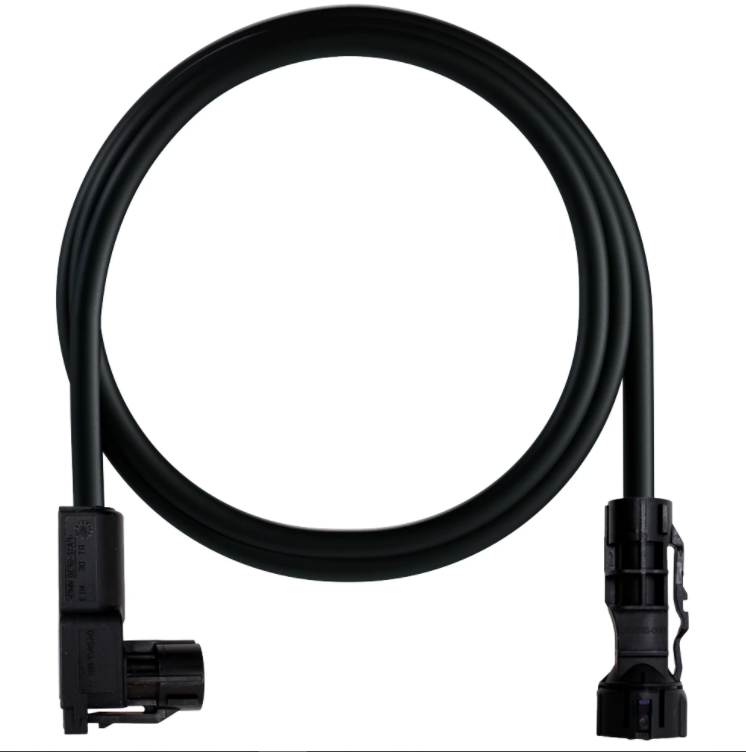

AiM PDM 32 Dash LVDS Cable 2M FCCA 682000

  • Mating Cycles: >25
  • Engagement Force: < 30N
  • Engagement Force Waterproof: <40N
  • Retention Force Latch: > 110N
  • Disengagement Force: > 5N
  • Retention Force Primary Lock: > 80N
  • Retention Force Secondary Lock: > 60N
  • Polarisation feature effectiveness: > 80N
  • Temperature Range: -40°C + 105°C
  • Thermal Shock IEC: 60068-2-64
  • Vibration IEC: 60068-2-64
