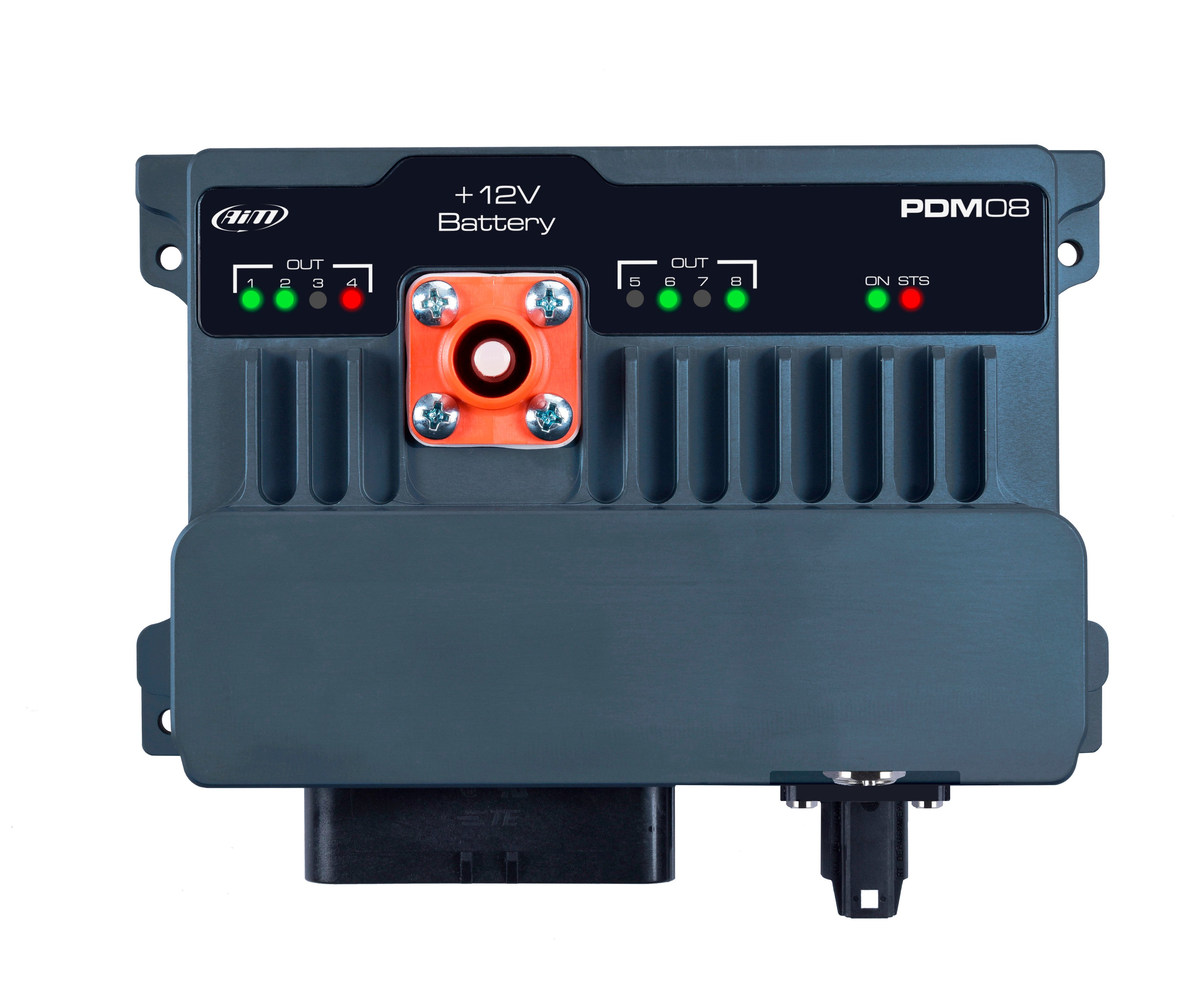

AIM XC1PDM0801 PDM08 with display connector and LVDS Cable

AED 5,890.50

Tax included. Shipping calculated at checkout

AIMP/N: XC1PDM0801
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

AIM XC1PDM0801 PDM08 with display connector and LVDS Cable

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650
The PDMs offer four different Power Outputs Levels:
Power Outputs PDM08

  • 1 with serie diode rated up to 20 A
  • 1 rated up to 25 A
  • 6 rated up to 15 A
  • Protected for: over voltage, under voltage, over current, over temperature
  • All outputs have internal freewheeling diode
  • Total max current: 100 A

Each output provides status feedback for open circuit, short circuit, high temperature, over current, under voltage and over voltage. Inrush current, number of fault retries and the time between retries are all definable.All the outputs may be configurable as PWM and allow soft start/stop.

For every output, a multicolor LED shows the status:
  • Enabled/disabled
  • Activated or not
  • Fault

Inputs:
PDM08 feature the following Inputs channels:

  • Analog/Digital - 6
  • Only digital -
  • Speed - 2

PDM08 with 08 High Side Outputs. Technical sheet can be downloaded here
PDM08  User guide can be downloaded here
PDM08/32 Part numbers can be downloaded here

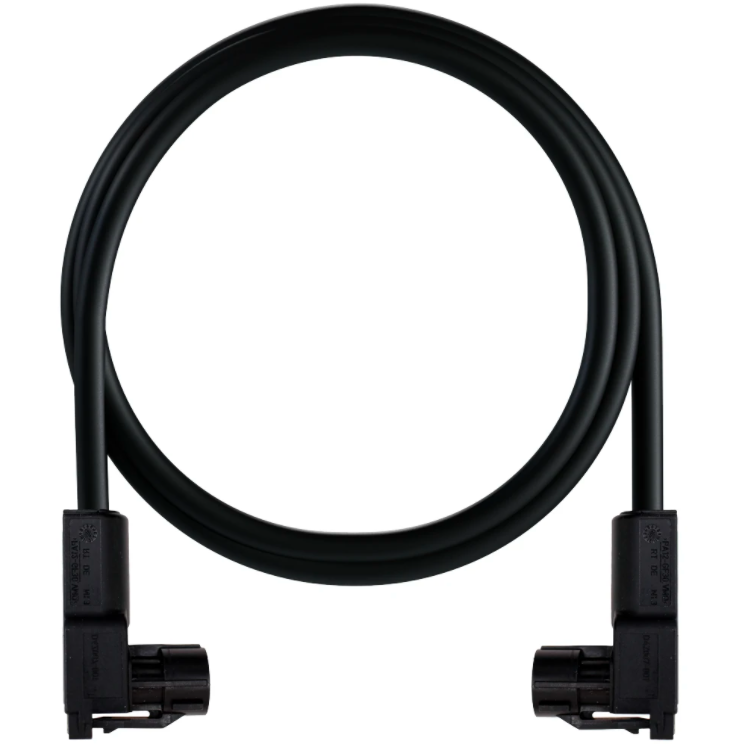

AiM PDM 08 Dash LVDS Cable

  • Mating Cycles: >25
  • Engagement Force: < 30N
  • Engagement Force Waterproof: <40N
  • Retention Force Latch: > 110N
  • Disengagement Force: > 5N
  • Retention Force Primary Lock: > 80N
  • Retention Force Secondary Lock: > 60N
  • Polarisation feature effectiveness: > 80N
  • Temperature Range: -40°C + 105°C
  • Thermal Shock IEC: 60068-2-64
  • Vibration IEC: 60068-2-64
