AIM XA8MXGST12I010 Dash MXG 1.2 Strada Street icons version with CAN harness (ECU)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour

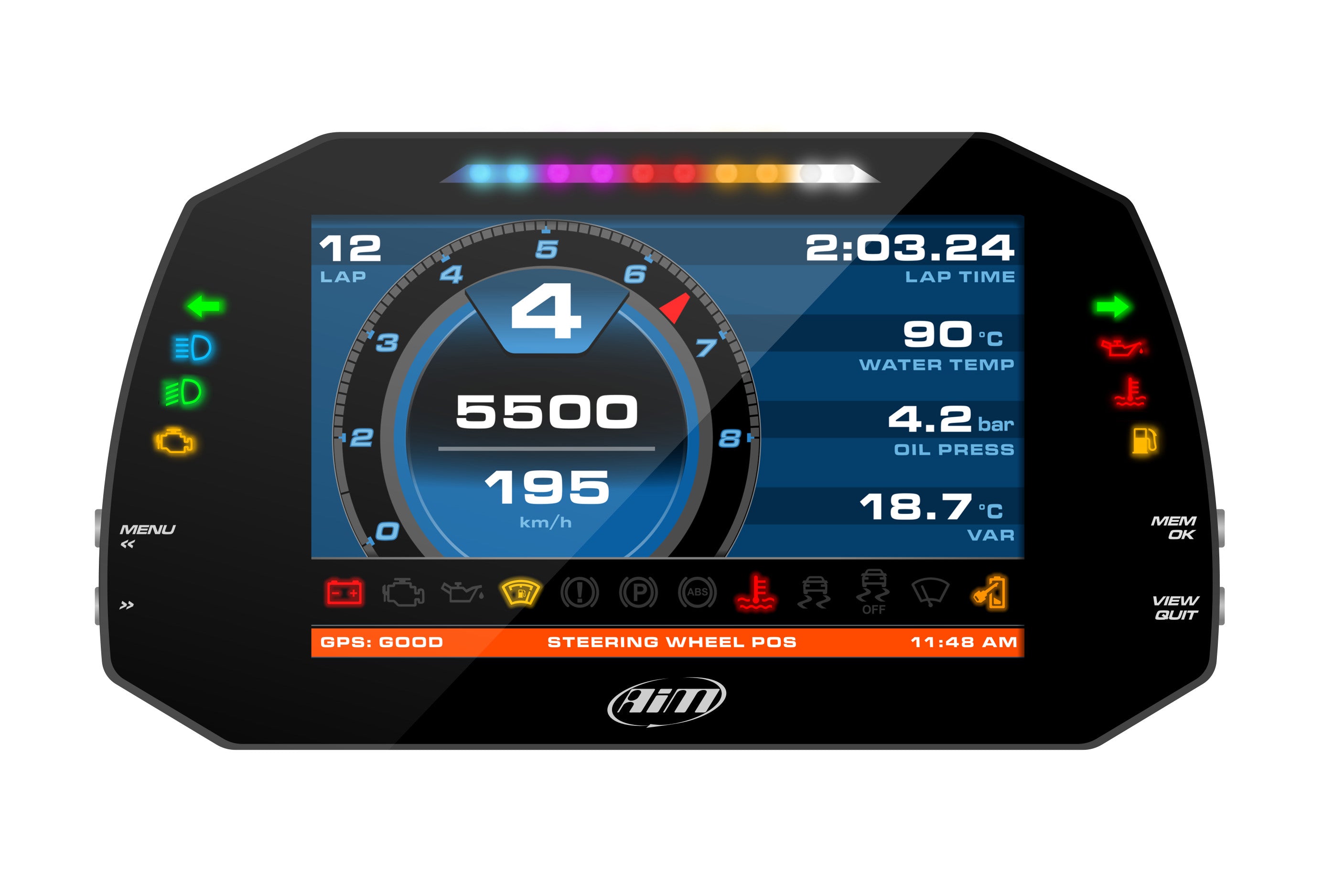

AIM XA8MXGST12I010 Dash MXG 1.2 Strada Street icons version with CAN harness (ECU)
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

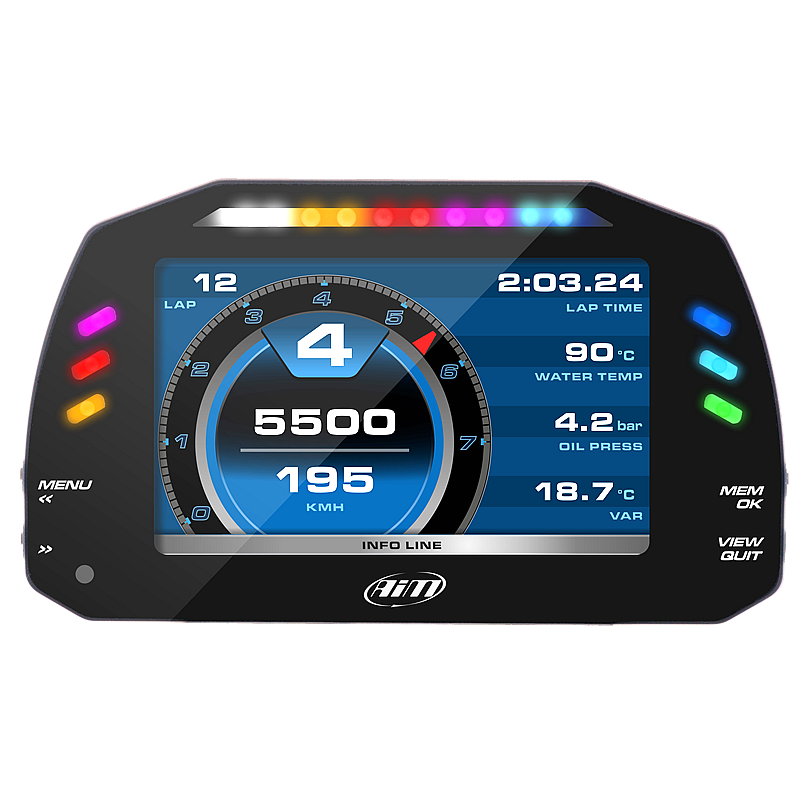

MXG 1.2 Strada is a 7" color display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels and - optionally - the GPS08 Module.
MXG 1.2 Strada features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU. This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
MXG 1.2 Strada features eight configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.
Furthermore you can select the street icons you need among the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn't be enough, you will be able to upload and set up your own customized icons.
- User guide can be downloaded here
- Technical sheet can be downloaded here
- Installation template (scaled 1:1) can be downloaded here
In the box; MXG 1.2 Strada, USB cable, 14 pins standard wiring, 23 pins connector + contacts, Race Studio 3 software.
