AIM XA4MXG12A40001 MXG 1.2 + 4 m GPS cable length
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
AIM XA4MXG12A40001 MXG 1.2 + 4 m GPS cable length
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

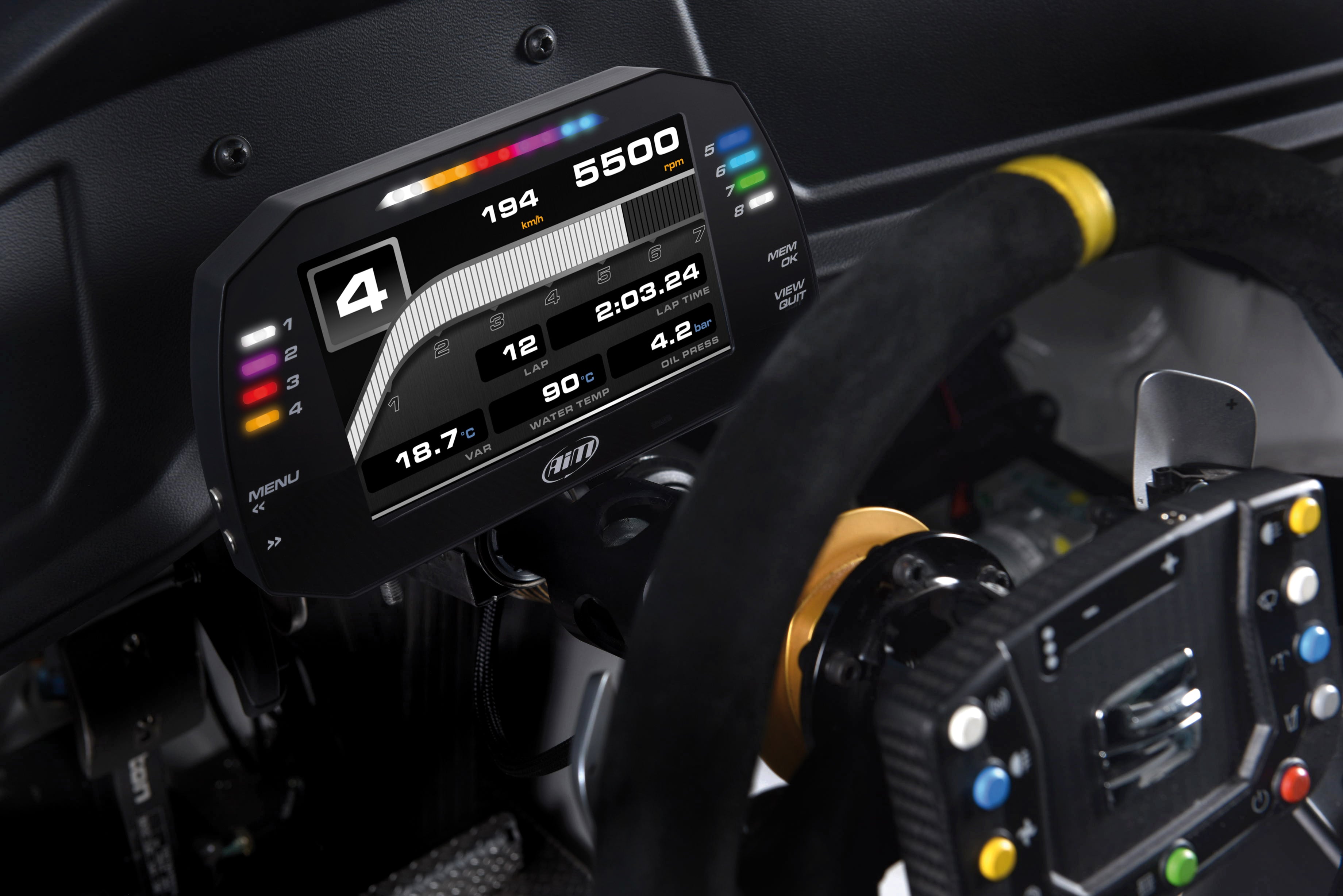

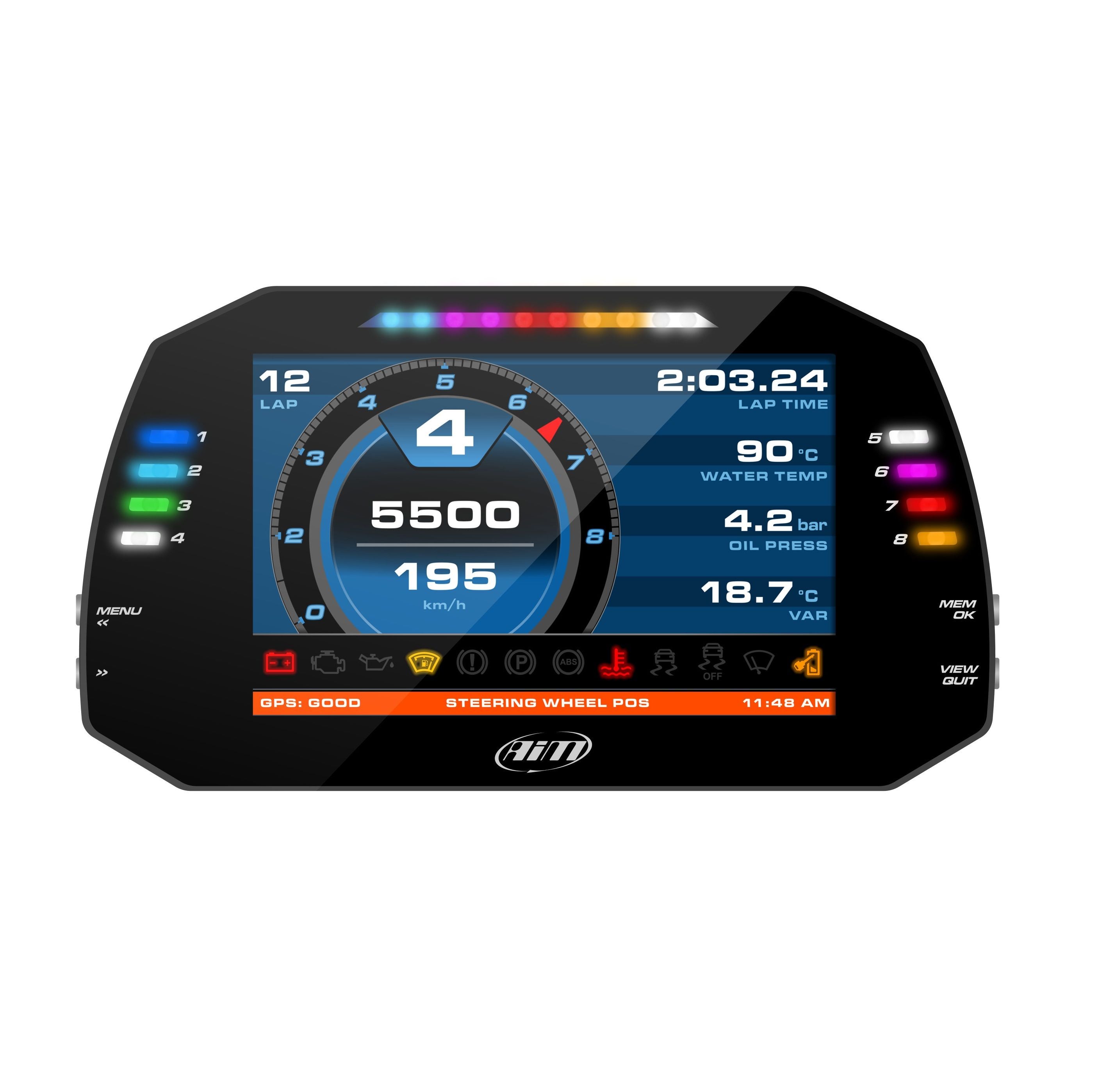

MXG 1.2, the evolution of MXG, is the dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7" display makes it perfect for wide cockpits installation.
MXG 1.2 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two pushbuttons.
- User guide can be downloaded here
- Technical sheet can be downloaded here
- Installation template (scaled 1:1) can be downloaded here

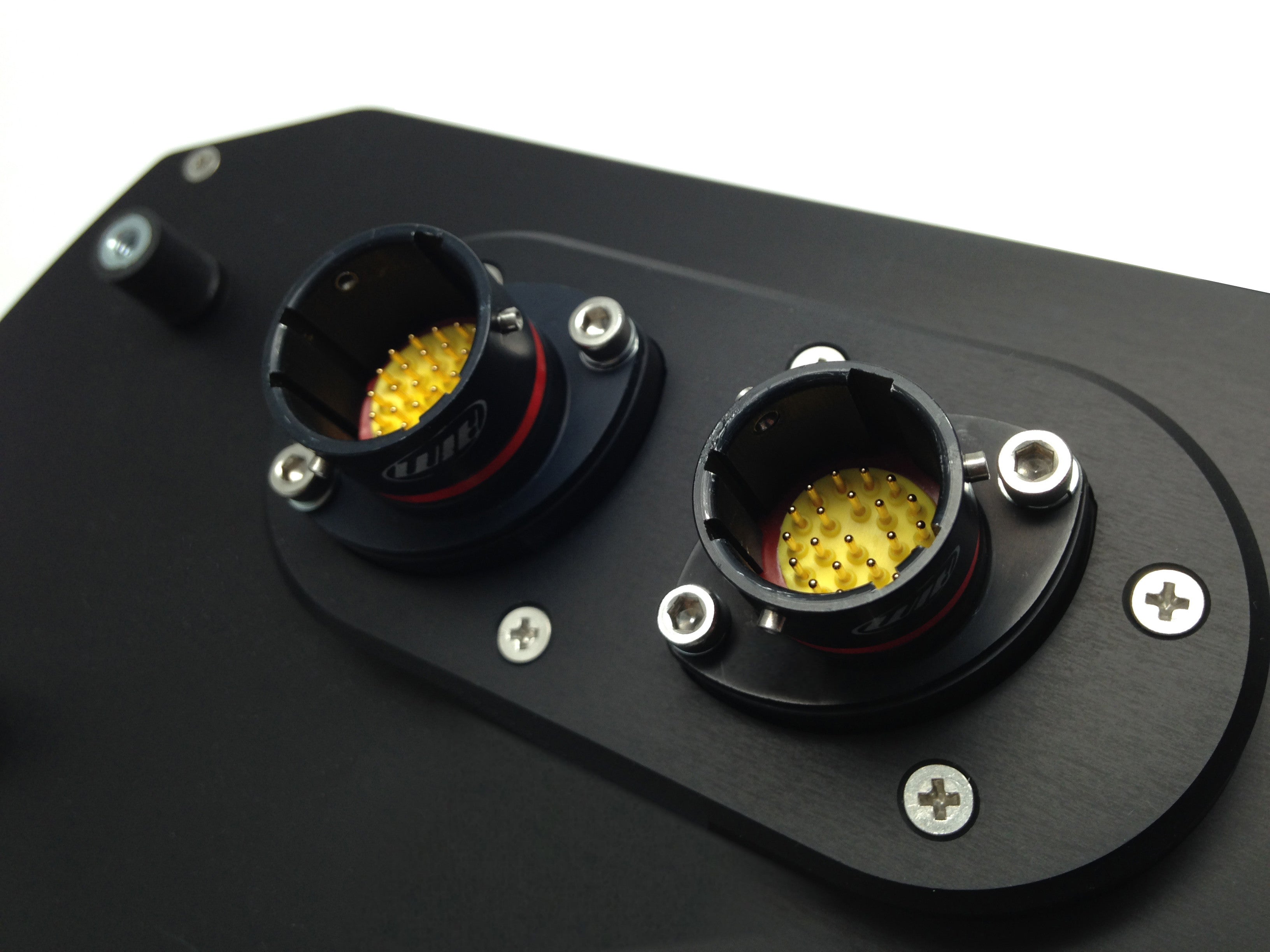

In the box: MXG 1.2, GPS Module with cable, USB cable, 37 pins standard harness, Race Studio 3 software.
