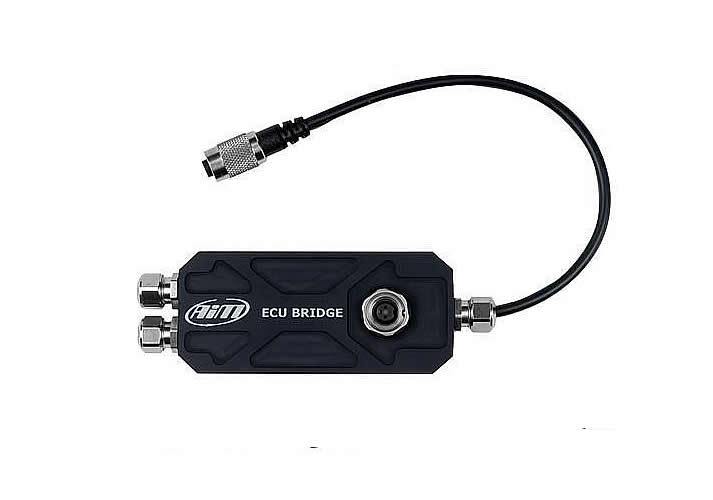

AIM X90BRIDGE02 RPM Bridge Interface module
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
AIM X90BRIDGE02 RPM Bridge Interface module
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
RPM Bridge is an interface designed to allow RPM overlay on SmartyCam HD videos when the car has got no engine control unit (ECU): this can happen with classic cars or particular car categories. RPM data are obtained with connection to the coil. RPM Bridge can as well be useful to get RPM data when ECU has got no data line CAN/K Line/RS232: in this case data are obtained with connection to the square wave signal coming from that kind of ECU.
RPM Bridge allows visualization but not recording of RPM data.
- User guide can be downloaded here
- TECHNICAL SPECS can be downloaded here
- RPM Bridge pinout can be downloaded here
IN THE BOX: RPM Bridge with connection cable (loose wires) + USB cable
