AIM X90BRIDGE01 BRIDGE OBD
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
AIM X90BRIDGE01 BRIDGE OBD
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

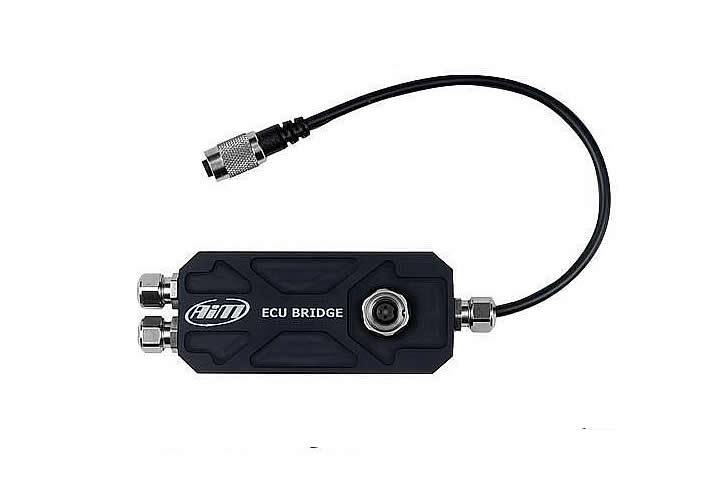

ECU Bridge has been designed and developed by AiM to allow SmartyCam to connect to your vehicle ECU, sample and show the data out coming from it. On www.aim-sportline.com, area download, ECU connection you find the list of supported ECU. ECU Bridge manages the three most popular communication protocols: CAN, RS232 and K Line. ECU Bridge samples but does not record data.
ECU Bridge is available in two versions:
- ECU Bridge with OBDII connector (K Line and CAN protocols) for direct connection with the vehicle ECU: recommended for stock ECUs
- ECU Bridge free wires (CAN/RS232 protocols) useful for connection with aftermarket ECUs
This user manual explains how to install, connect and configure ECU Bridge.
Please note: to always keep you ECU Bridge updated AiM strongly recommends to periodically check
AiM www.aim-sportline.com, area download software and/or firmware and download the latest
versions of ECU Bridge firmware and Race Studio 2 Configuration software.
IN THE BOX: ECU Bridge with connection cable (CAN/RS232 or CAN/K Line) + USB cable
