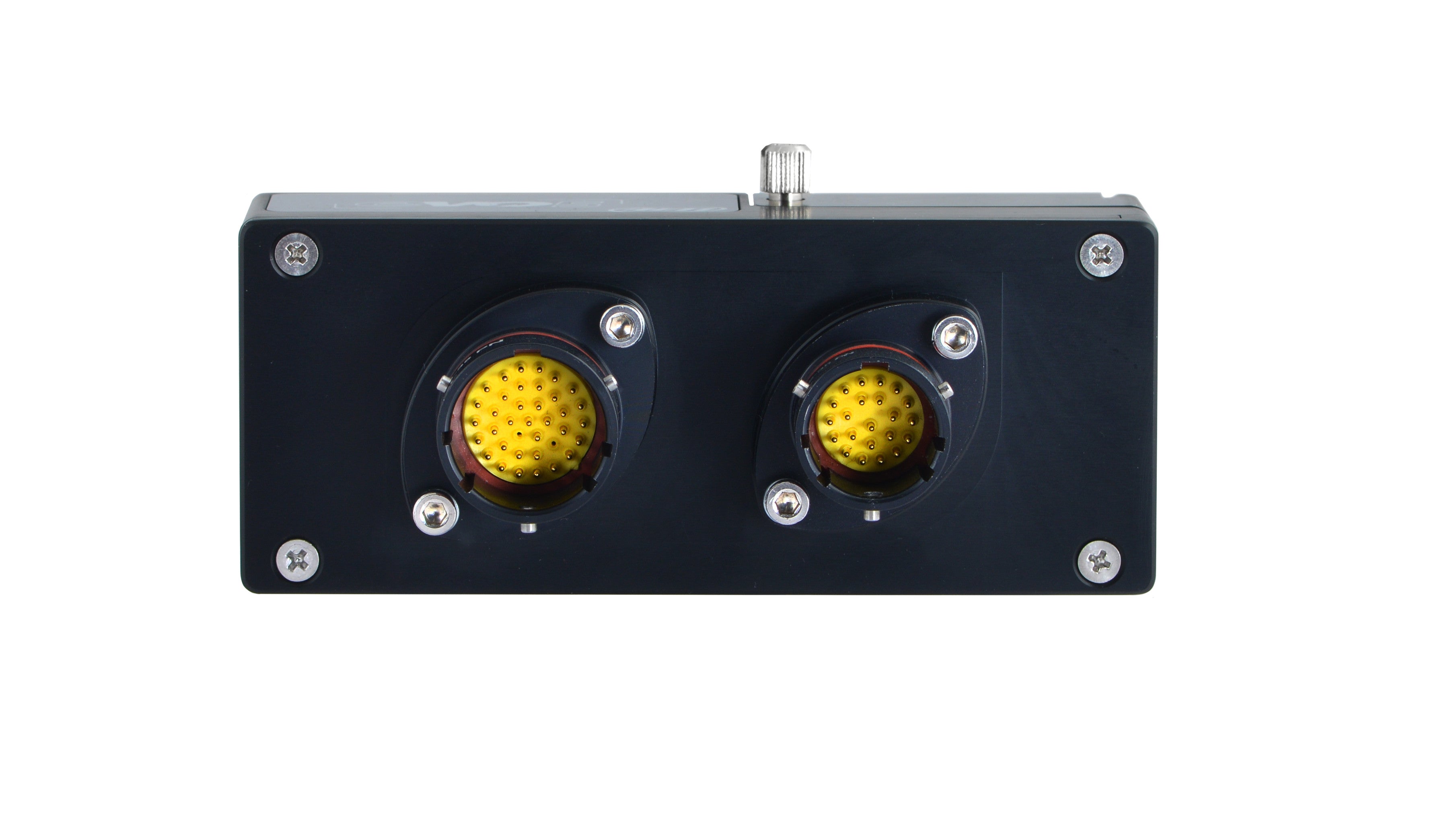

AIM X62EVO5130 EVO5 with GPS08 Module with 1.30 m cable length
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
AIM X62EVO5130 EVO5 with GPS08 Module with 1.30 m cable length
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
EVO5 samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 Module included in the kit. And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 8 configurable analog channels, to the RPM input and to 4 wheel speed inputs.
EVO5 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/ de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
The internal SD card (not included in the box) permits to record all possible data you may ever need. The card is protected by a waterproof door equipped with a sensor closing all files when you open it, to prevent any data loss possibility. No way to have a faster data downloading: you remove the SD and... it is done! Of course a USB connection is available, too.
In the box: EVO5, 37 pin harness, USB cable, GPS08 Module, mounting bracket, Race Studio 3 software CD.
