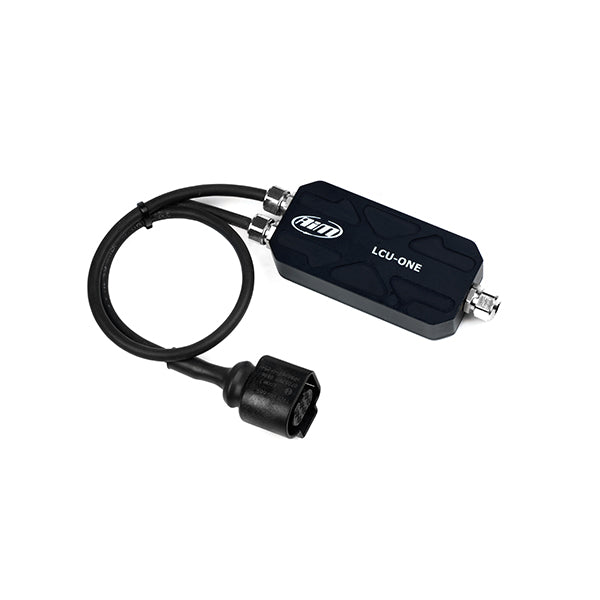

AIM X08LCU05CAN0 Lambda controller unit CAN interface
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
AIM X08LCU05CAN0 Lambda controller unit CAN interface
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
LCU-One's can detect punctual Lambda value from 0.65 to 1.6, offering you an extremely precise measurement, very useful for engine tuning.Through the analysis of the remaining oxygen, LCU-One points out possible oxygen excess/lack in the carburetion, providing an essential information for 4 strokes engines: configurability of Stoichiometric ratio allows LCU-One to be used on petrol powered engines as well as on diesel or on alternative fuel (bio fuel, ethanol) powered ones.
Two variants for all your needs

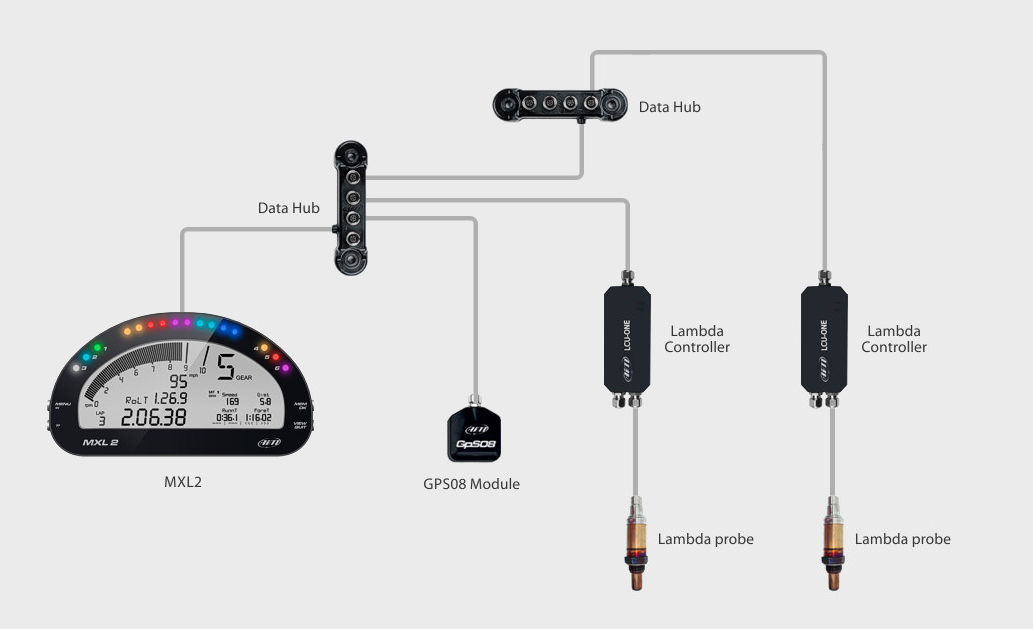

Uses a CAN bus and is extremely easy to install.The product configures Stoichiometric point and provides:
- Lambda value and Air/Fuel ratio
- Lambda probe temperature and diagnosis
- LCU-One CAN for MyChron5 user guide can be downloaded here
- LCU-One CAN for MyChron4 User manual can be downloaded here
- LCU-One CAN for MyChron4 660 User manual can be downloaded here
- LCU-One CAN for MXL/EVO3 User manual can be downloaded here
- LCU-One CAN for MXL QM/EVO3 QM User manual can be downloaded here
- LCU-One CAN pinout can be downloaded here
Uses a serial line for programming and an analog output proportional to lambda value. To be even more user-friendly, LCU-One CAN and LCU-One Analog switch on/off together with the logger.The product provides Lambda value and Air/Fuel ratio and - thanks to the dedicated Lambda Configurator software, LCU-One Analog allows to configure:
