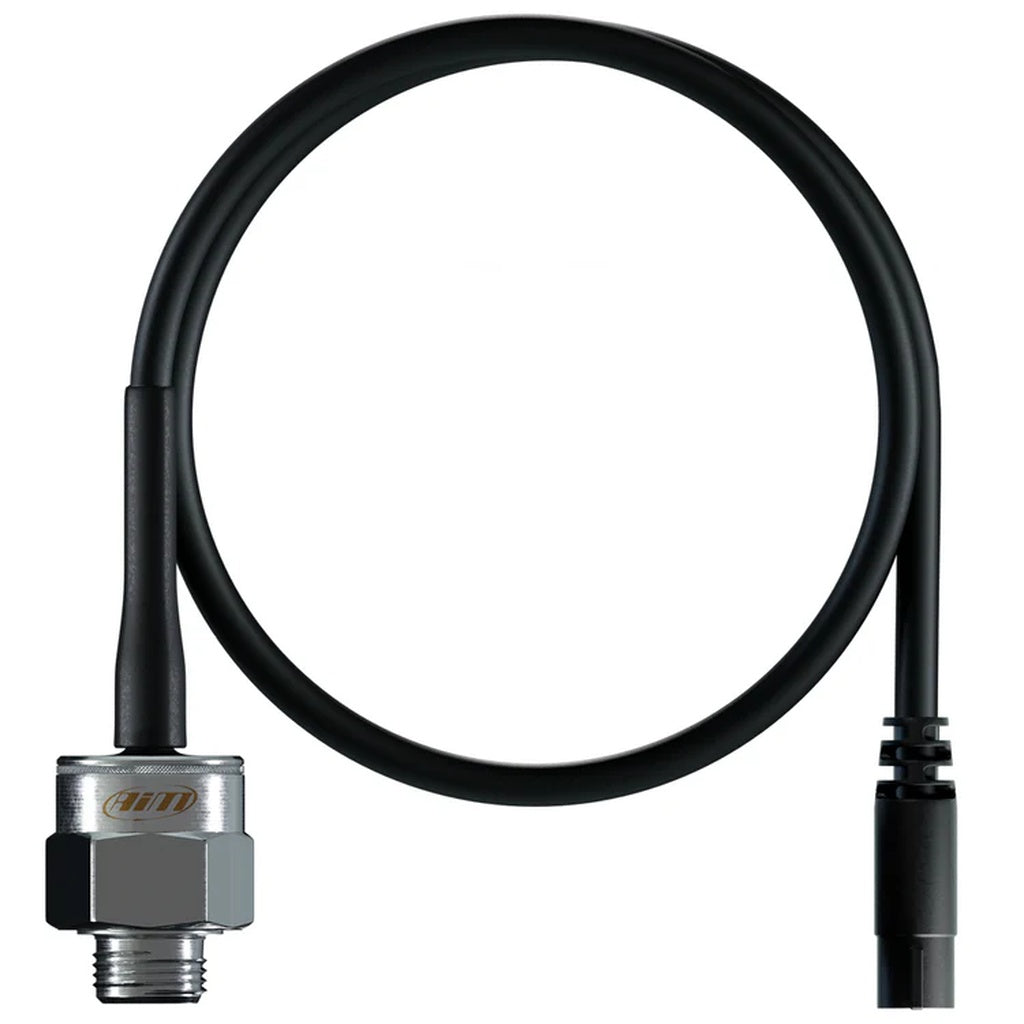

The AiM X05PSA00160B10K kit is designed for secure and precise installation of an oil pressure sensor in high-performance and motorsport applications. It provides stable sensor integration even under extreme temperature and vibration conditions. The kit includes both the AiM 0–160 bar M10 pressure sensor and all required fittings, allowing full system implementation without additional parts.
Kit Contents:

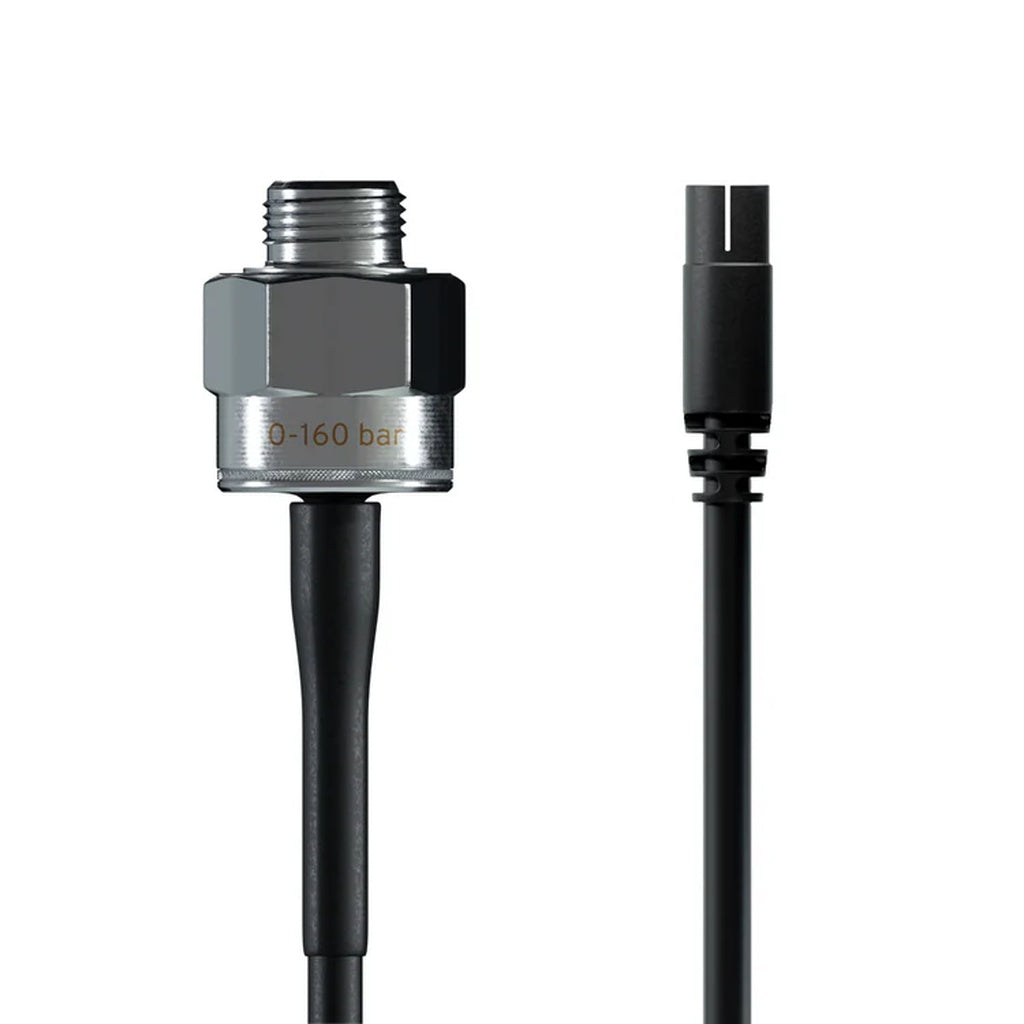

- AiM 0–160 bar pressure sensor with M10 thread
- 2 lock nuts
- 2 nipples
- Metallic “T” junction with M10 thread
Specifications:
- Supply: 8–16 V
- Accuracy: < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Output Signal: 0.5 V to 4.5 V
- Characterisation: 500 mV/0 bar, 4500 mV/160 bar
- Consumption: < 10 mA
- Temperature Working Range: -20°C to 135°C
- Sealing: IP66
- Housing: 316 Stainless Steel
- Weight: 30 g
- Cable Length: 400 mm
- Thread: M10
