AIM X05PSA00100B38K AiM pressure sensor 0-100 bar
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
AIM X05PSA00100B38K AiM pressure sensor 0-100 bar
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
AiM 0-100 bar 3/8 24 pressure sensor is suitable for brake pressure reading, being able to read pressures up to 100 bars.

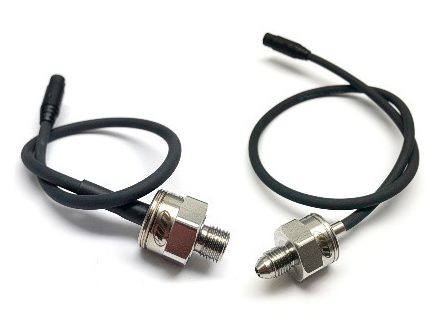

The sensor is sold with two different threads, whose part number is:
0-100 bar M10 - X05PSA00100B10K
• 0-100 bar 3/8 24 - X05PSA00100B38K
Technical characteristics:
- Supply - 8-16 V
- Accuracy - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption - < 10 mA
- Temperature working range - from -20°C to 135°C
- Sealing - IP66
- Housing - 316 stainless steel
- Weight - 30 g
- Cable - length 400 mm
- Thread - M10 – 3/8 24
Datasheet can be downloaded here
Race Studio 3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
