AIM X05PSA00010B18K AiM pressure sensor KIT 0-10BAR 1 / 8 NPTAIM Photo-0

AIM X05PSA00010B18K AiM pressure sensor KIT 0-10BAR 1 / 8 NPTAIM

AED 1,099.56

Tax included. Shipping calculated at checkout

AIMP/N: X05PSA00010B18K
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

AIM X05PSA00010B18K AiM pressure sensor KIT 0-10BAR 1 / 8 NPTAIM

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650
AiM 0-10bar 1/8 NPT pressure sensor is suitable for oil and fuel pressure reading, being able to read pressures up to 10 bars.

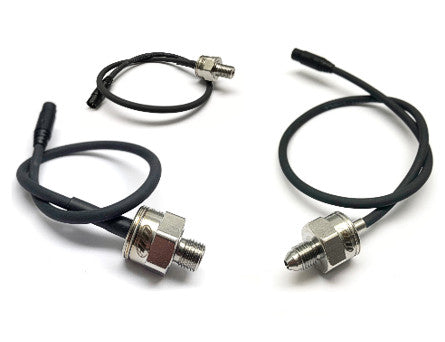

The sensor is sold with three different threads, whose part number is:
• 0-10 bar M10 - X05PSA00010B10K
• 0-10bar 1/8 NPT  - X05PSA00010B18K
• 0-10 bar 3/8 24  - X05PSA00010B38K

Technical characteristics:
  • Supply - 8-16 V
  • Accuracy  - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
  • Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
  • Consumption - < 10 mA
  • Temperature working range - from -20°C to 135°C
  • Sealing - IP66
  • Housing - 316 stainless steel
  • Weight - 30 g
  • Cable - length 400 mm
  • Thread  - M10 – 3/8 24 – 1/8 NPT

Datasheet can be downloaded here
Race Studio 3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
