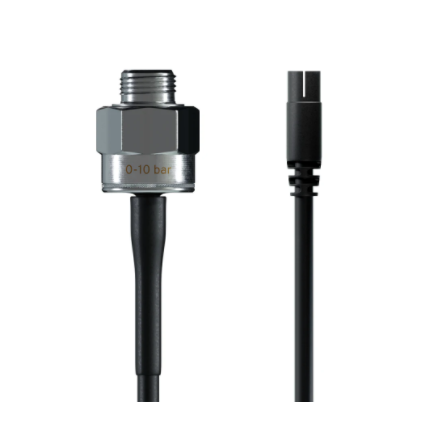

AIM X05PSA00010B10K AiM pressure sensor 0-10 bar M10 40 cm
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
AIM X05PSA00010B10K AiM pressure sensor 0-10 bar M10 40 cm
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
AiM 0-10bar M10 pressure sensor is suitable for oil and fuel pressure reading, being able to read pressures up to 10 bars.
The sensor is sold with three different threads, whose part number is:
• 0-10 bar M10 - X05PSA00010B10K
• 0-10bar 1/8 NPT - X05PSA00010B18K
• 0-10 bar 3/8 24 - X05PSA00010B38K
Technical characteristics:
- Supply - 8-16 V
- Accuracy - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption - < 10 mA
- Temperature working range - from -20°C to 135°C
- Sealing - IP66
- Housing - 316 stainless steel
- Weight - 30 g
- Cable - length 400 mm
- Thread - M10 – 3/8 24 – 1/8 NPT
Datasheet can be downloaded here
Race Studio 3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
