AIM FCCA682000 LVDS Cable for PDM32 2 mt
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
AIM FCCA682000 LVDS Cable for PDM32 2 mt
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

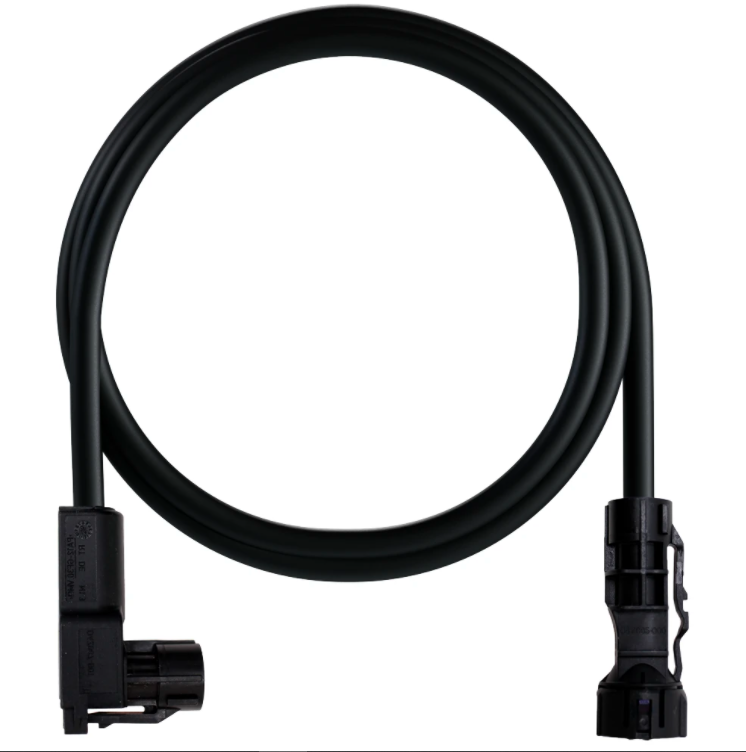

AiM PDM 32 Dash LVDS Cable 2M FCCA 682000
- Mating Cycles: >25
- Engagement Force: < 30N
- Engagement Force Waterproof: <40N
- Retention Force Latch: > 110N
- Disengagement Force: > 5N
- Retention Force Primary Lock: > 80N
- Retention Force Secondary Lock: > 60N
- Polarisation feature effectiveness: > 80N
- Temperature Range: -40°C + 105°C
- Thermal Shock IEC: 60068-2-64
- Vibration IEC: 60068-2-64
