ADRO R14A90-1201 Front Race Splitter ARD for BMW M2 (G87)

Description ADRO R14A90-1201 Front Race Splitter ARD for BMW M2 (G87)

What is ARD?

ARD (ADRO Racing Division) is ADRO's motorsport engineering program, built for drivers who demand more from their car on track. Every ARD component is developed using CFD simulation and track testing before reaching the customer.

Scott, ADRO's Head of Aerodynamics, brings an F1 development background to every ARD project. The G87 M2 ARD Aero Package is one of the first full systems to come out of that program.

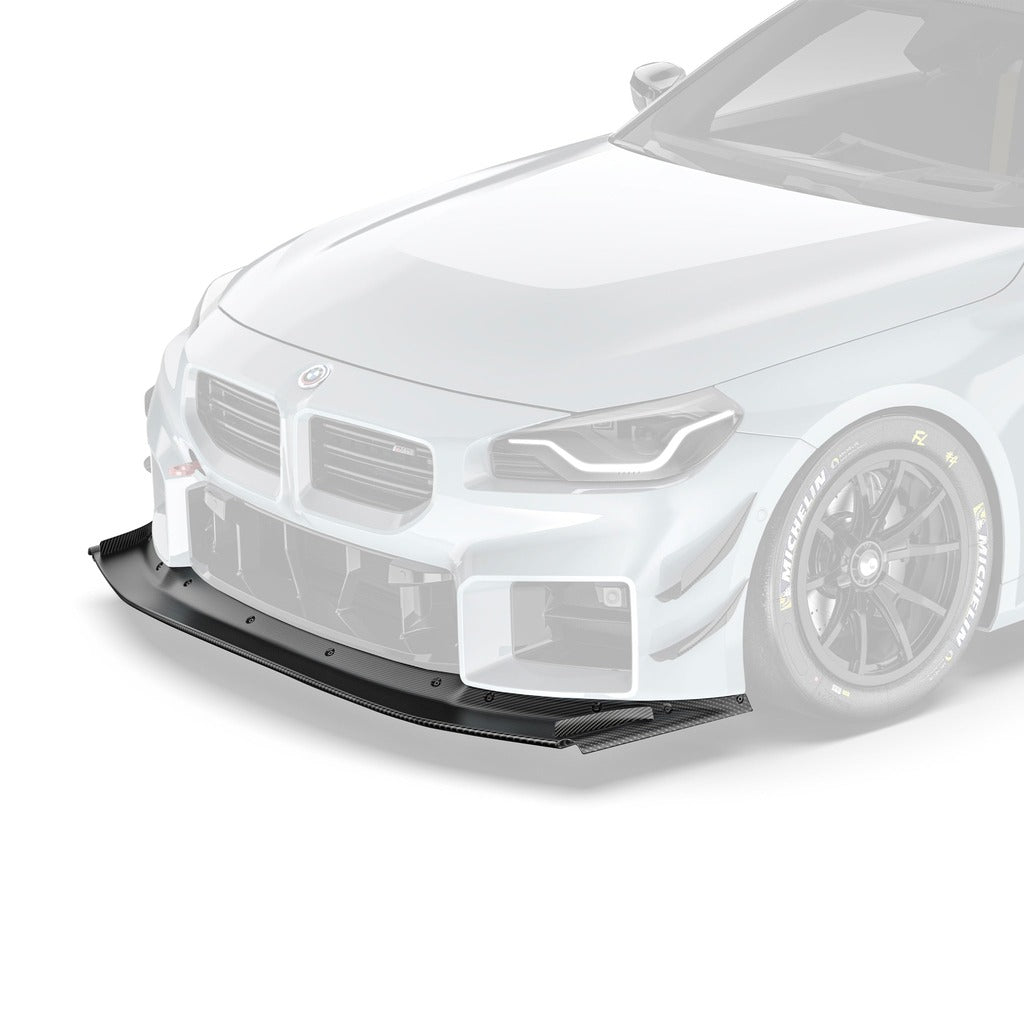

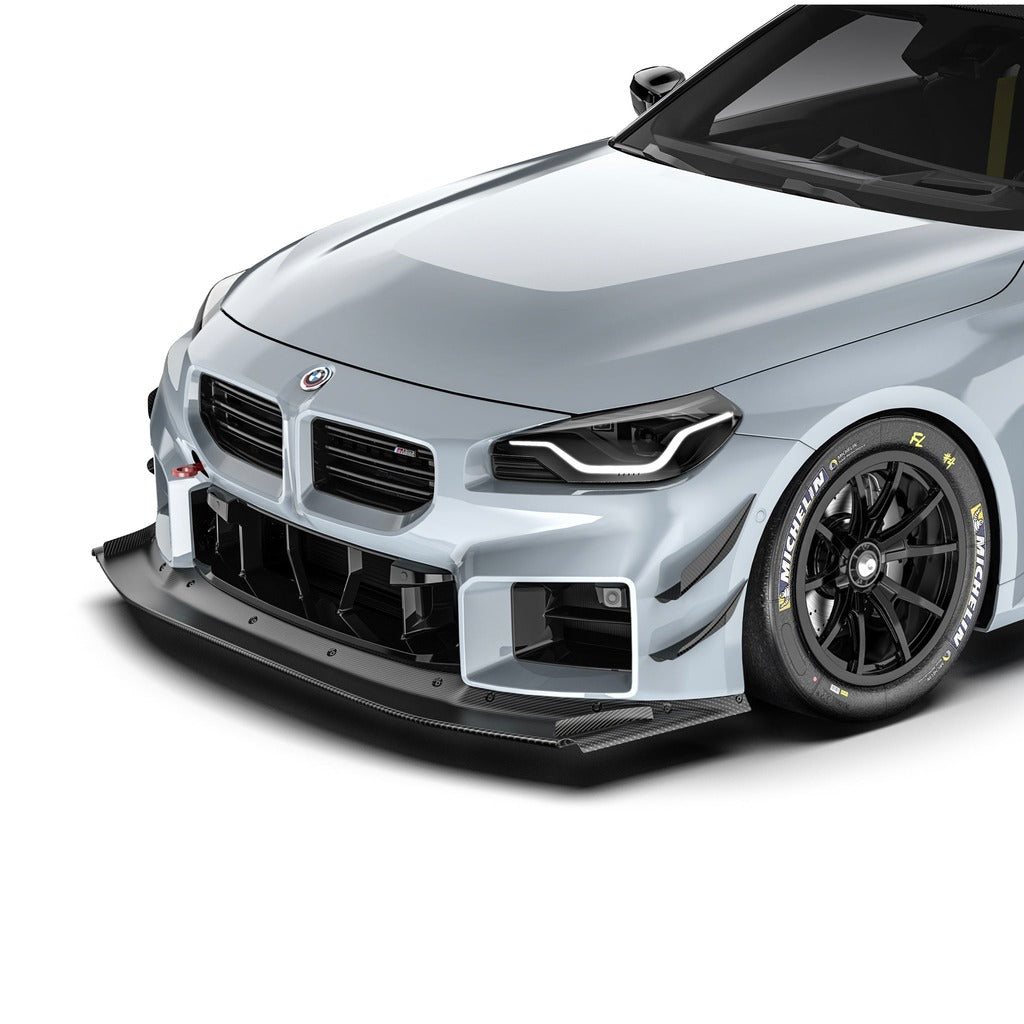

The Front Splitter: This is not about adding a flat panel to the front end. It initiates a complete aerodynamic strategy that starts at the nose and must be managed all the way to the rear diffuser. Every element of the splitter assembly is CFD-developed to generate, direct, and sustain the vortex structures that the rest of the ARD system depends on.

• Upper vanes condition the airflow over the outer splitter surface, creating and powering the vortices under the splitter endplate tunnels.
• Lower strakes control outwash across the splitter, preventing spillage and maximizing effective working area.
• F1-inspired endplates initiate strategic vortex generation down the car's sides, working with the side skirts to extract more air and drive more flow under the front end.

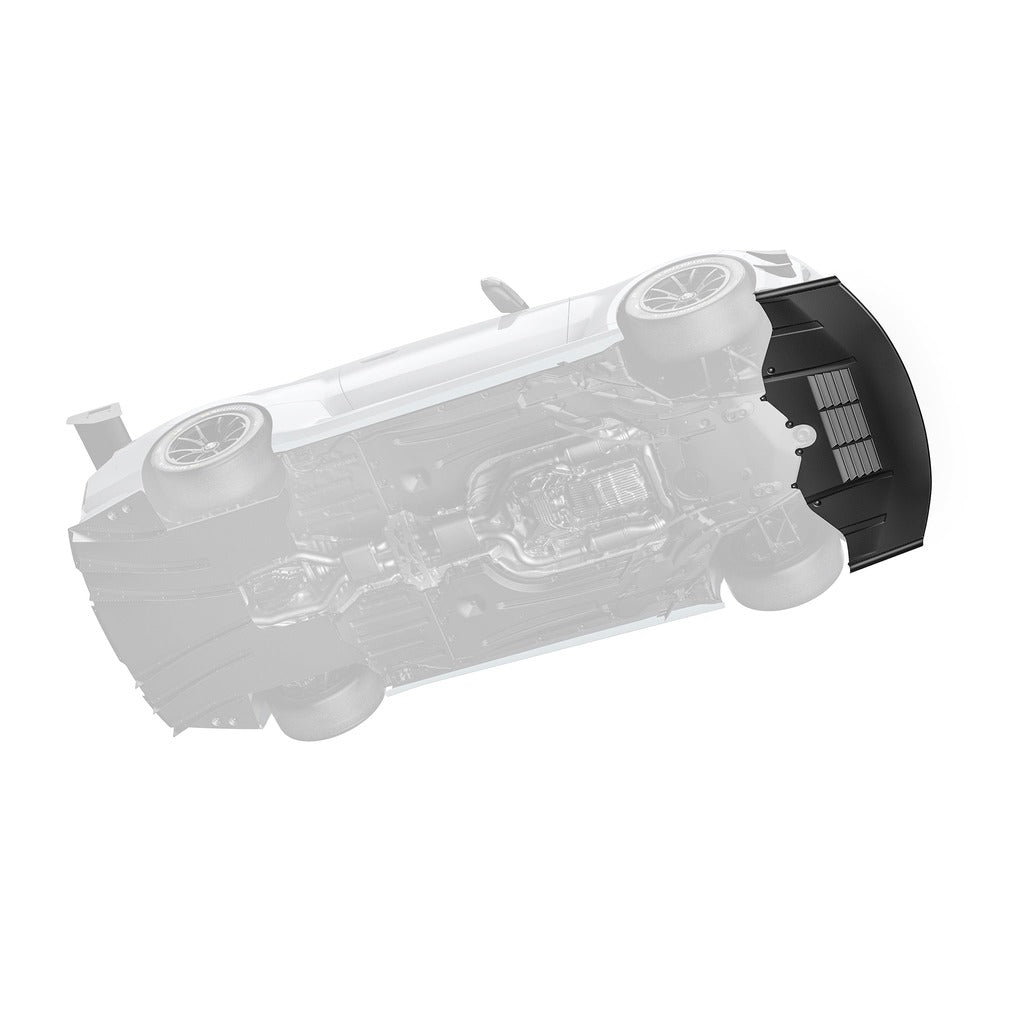

• The raised central splitter section feeds the six mid-floor undervanes and delivers clean flow to the rear diffuser while reducing pitch sensitivity.

Every element is CFD-developed to work as an integrated system. Balanced aerodynamic development begins by maximizing the front, then setting the balance with the rear wing.

Specifications:

• Downforce at 180 km/h: 2555 N (574 lbs) as part of the complete ARD Aero Package
• Increase over stock M2 downforce: 1254%
• Stock M2 downforce at 180 km/h: 189 N
• Downforce gain: +2366 N (532 lbs)

Material: ARD components are produced in prepreg Carbon Fiber. Prepreg uses resin pre-impregnated into the fiber under controlled conditions, providing precise and consistent resin distribution throughout the part. The result is a lighter, stiffer panel with no soft spots or resin-rich areas that can delaminate under sustained load.

For track use, this matters beyond aesthetics. A splitter that flexes under aerodynamic load does not produce the downforce it was designed to. Prepreg eliminates that variable, allowing the part to deliver what the CFD predicted, lap after lap, in heat and under sustained aero loads.

Note:

Due to ongoing fluctuations in shipping rates, prices for ADRO products are subject to change. Please contact us to confirm the final price, including delivery, before placing your order.

Shipping individual components is currently particularly costly. We recommend ordering complete kits to help reduce shipping costs and get better value from your purchase.
