Mitsubishi Evo X

The Final Evolution: Mastering the Mitsubishi Lancer Evo X

The Mitsubishi Lancer Evolution X (CZ4A) is the last of a legendary dynasty, a tech-laden weapon armed with the incredible S-AWC all-wheel-drive system and the potent 4B11T MIVEC turbo engine. While its handling is razor-sharp from the factory, preparing the Evo X for the unique demands of the Dubai Autodrome and the UAE climate requires a focused approach. Key areas like thermal management and braking endurance are critical. Atomic Shop offers a race-proven catalog of upgrades to make your Evo X faster, more reliable, and more dominant.

Thermal Management: The Key to Consistent Power

The 4B11T engine generates immense heat, and the stock cooling system is its Achilles' heel in warm climates.

CSF Intercoolers & Radiators

Heat soak is the enemy of turbocharged performance. A CSF Bar & Plate Front Mount Intercooler is a critical upgrade. The stock intercooler is prone to "heat soak" during repeated pulls or in hot weather; the ECU detects high intake temperatures and reduces power to protect the engine. A larger, more efficient CSF unit ensures full power is always available.

Braking Performance: Control Under Pressure

The factory Brembo calipers are excellent, but they require the right pads and rotors to withstand track abuse without fading.

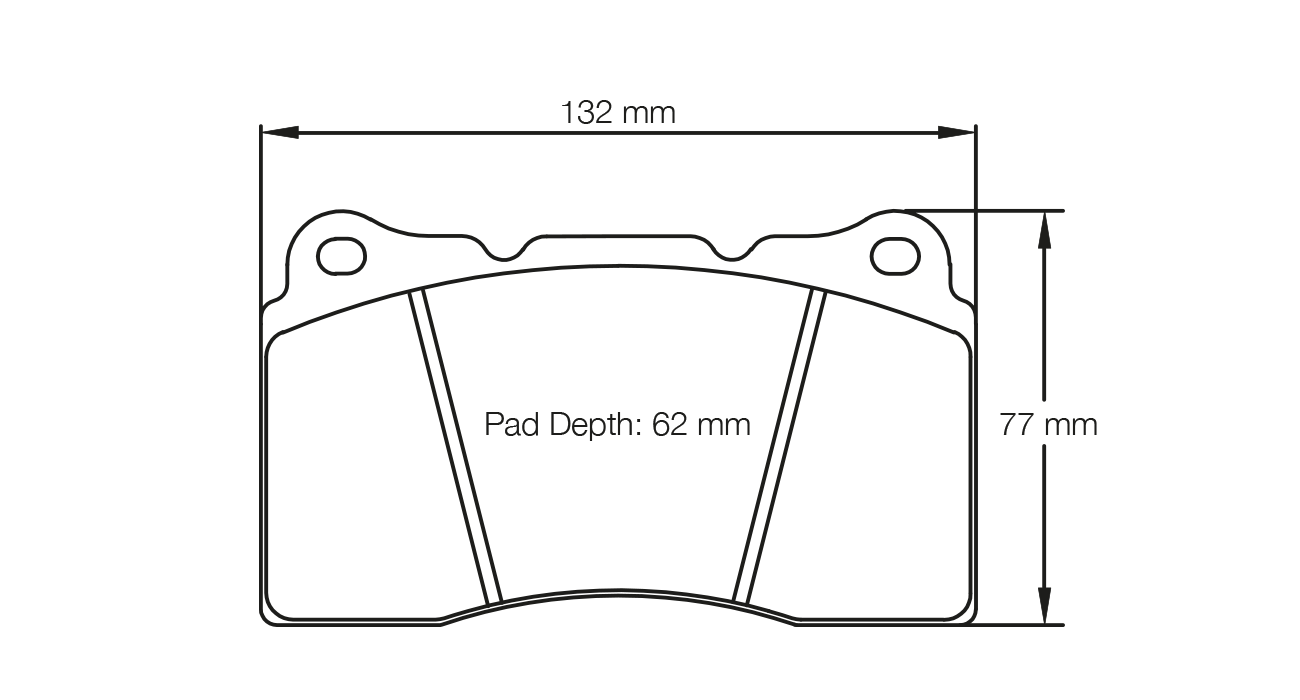

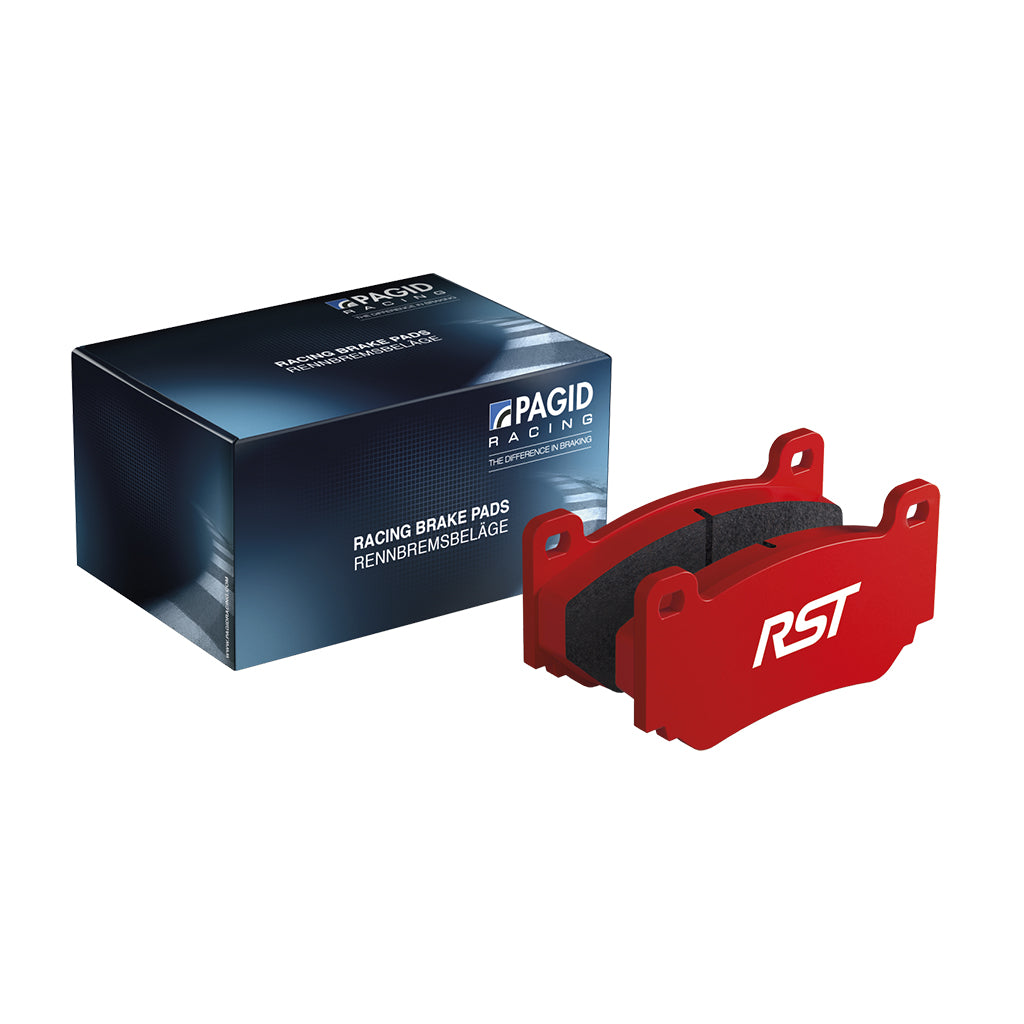

• PFC & Pagid Track Pads: For serious stopping power, stock pads won't cut it. We offer aggressive track compounds from PFC Brakes (08 & 01) and Pagid (RSL29 & RSL1) that provide a massive increase in thermal capacity and bite.
• Girodisc 2-Piece Rotors: Reduce unsprung weight and dramatically improve cooling. Their two-piece floating design allows for better heat expansion and dissipation, making them far more resistant to warping and cracking than stock discs.

Unlocking the 4B11T: Tuning & Fueling

The 4B11T engine is a powerhouse waiting to be unleashed.

COBB Accessport V3

The heart of any Evo X tuning journey. The Accessport allows you to flash the ECU with proven maps, monitor engine parameters in real-time, and unlock significant gains in horsepower and torque. It's the most effective "first mod".

Upgraded Fuel System

The stock system is a bottleneck. To safely run higher boost or E85 fuel, upgrades like a high-flow fuel pump (AEM/Walbro) and larger injectors (Injector Dynamics) are mandatory to prevent dangerous lean conditions.

Harnessing S-AWC: Suspension & Interior

Refine the connection between the driver, the car, and the road.

• Öhlins & KW Coilovers: A set of Öhlins Road & Track or KW coilovers allows for full adjustment of damping and ride height, letting you dial in the car's handling for maximum grip.
• Recaro Seats & Bride Rails: Installing a Recaro Pole Position seat using Bride Seat Rails lowers your center of gravity and holds you securely, allowing you to react faster to the chassis.

FAQ: Mitsubishi Evo X Upgrades
