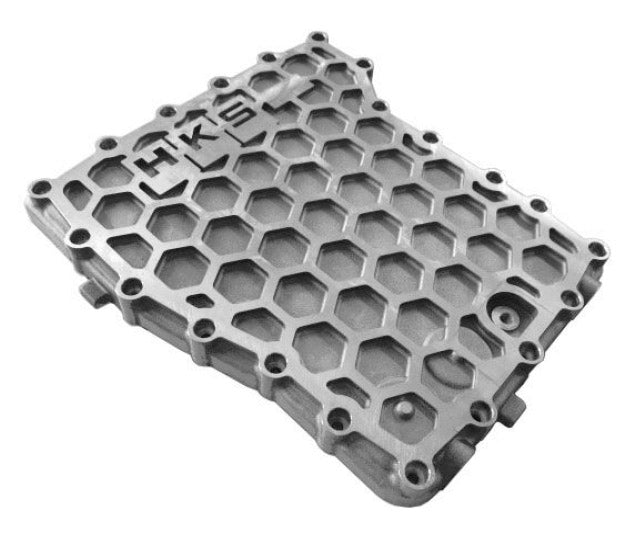

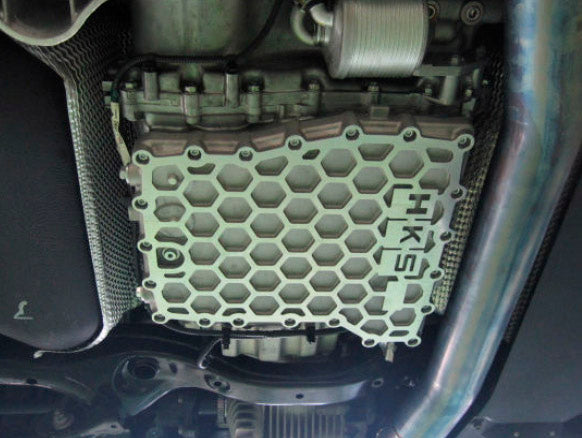

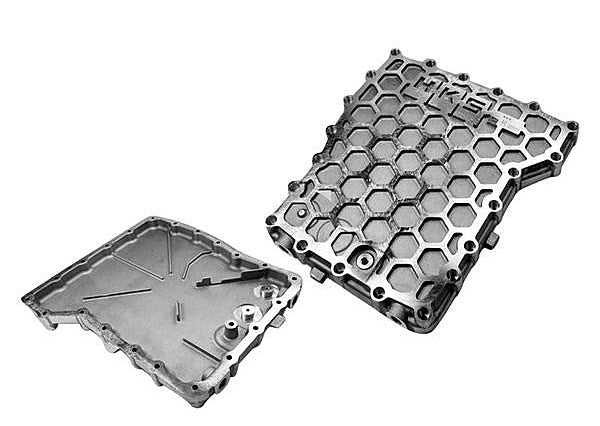

HKS 27001-AN001 Oil Pan Upgrade Nissan GT-R R35
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
HKS 27001-AN001 Oil Pan Upgrade Nissan GT-R R35
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
- Replacing the oil pan can improve the strength; it provides a 30% increase in strength compared to the factory pan. The stress to the shaft bearing and gear tooth inside the transmission caused by the higher engine output and/or circuit driving can be relieved.
- HKS Oil Pan is not only effective for the tuned engine, but also for the factory engine since the oil pan prevents metal debris from entering to the transmission oil so the oil can be kept clean.
- HKS Oil Pan will be a large opening of the transmission case. The strength can be improved with simple operations.

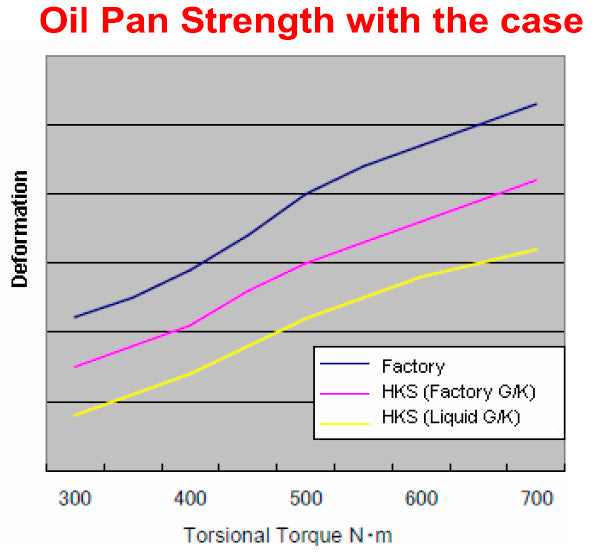

- Using the liquid gasket* is recommended for better sealing. (Refer to the graph above.)
* It is recommended to use the TB 1217 or an equivalent. - HKS Oil Pan has additional internal ribs to improve the oil flow to the strainer. The required engine oil volume is the same as the factory's designated volume. The factory magnet and oil level gauge must be used.
- Since two M16 sized oil outlets are on the pan's side, the oil cooler can be installed. Also, using these outlets as an oil drainer can drain almost all engine oil remained inside the oil pan.
