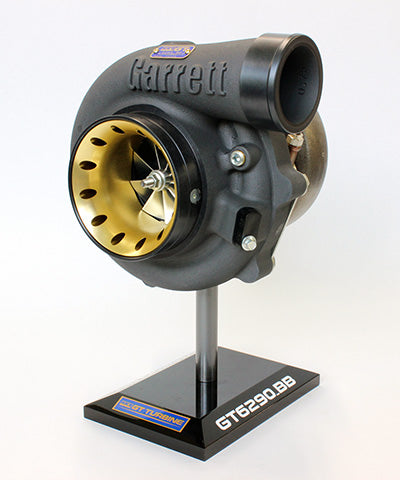

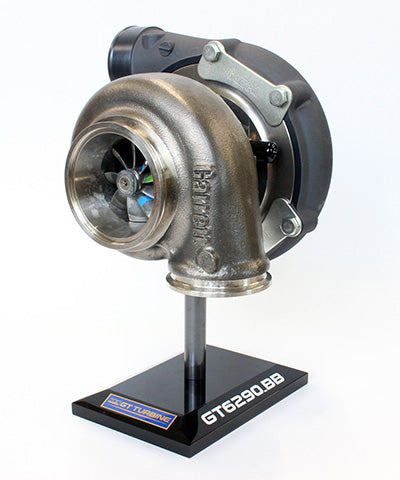

HKS 14001-AK073 Turbine GT6290_BB 4R T4 A/R 0.81
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
The GT TURBINE SERIES has added the T4 flange type to the lineup, which is compatible with the HKS SET UP KIT. The T4 flange is standard with the GTIII-4R and TO4 series. Compared to the previous turbochargers in the HKS lineup, the GT TURBINE SERIES can provide massive charging air flow despite the small diameter of both compressor/turbo wheels. The turbo housing is an HKS original exclusive design. The compressor housing is treated with a special highly durable matte black coating、preventing aluminum corrosion due to age-related deterioration. The GTIII-5R and 4R designed machined aluminum ported shroud with the combined bell mouth and T51R type recirculation channel have been adopted to provide anti-surging and smooth air intake flow. With the exterior design in mind, the champagne gold anodized finish of the aluminum ported shroud improves the aesthetic appeal of the engine compartment.
- Output (PS) 900
- Compressor Wheel
- Inlet Diameter 68 mm
- Outer Diameter 84 mm
- Trim 65
- Turbine Wheel
- Inlet Diameter 62 mm
- Outer Diameter 68 mm
- Trim 84
- Compressor Housing
- Inlet Diameter 101.6 mm
- Outlet Diameter 70 mm
- A/R 1.11
- Exhaust Housing
- Inlet Flange T4
- Outlet Flange V-band
- Material Stainless Steel
- A/R 0.75
