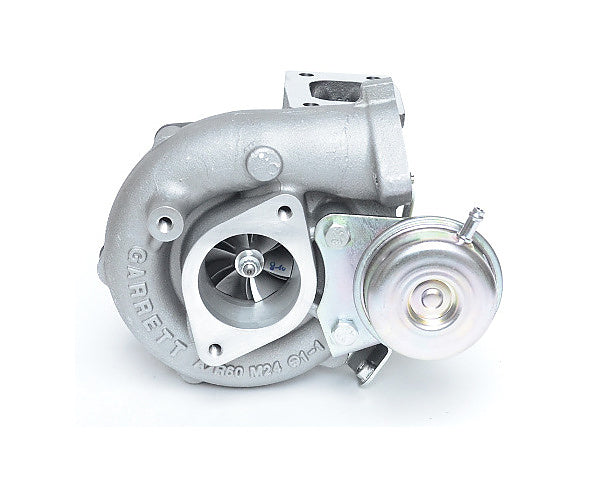

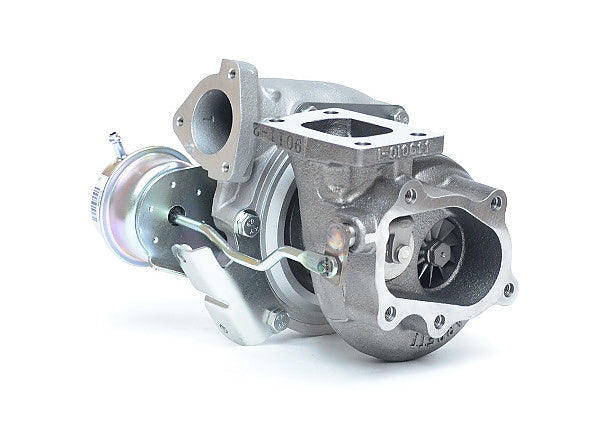

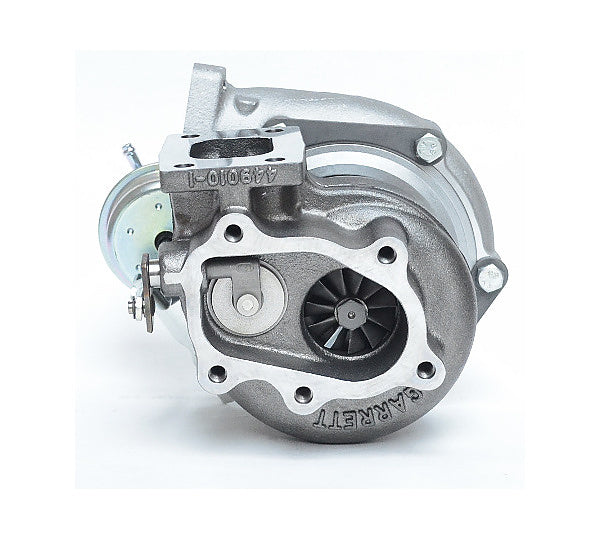

GARRETT 836023-5003S Turbocharger GT2560R A/R 0.64 - T25/5-bolts - Wastegated
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
New 8mm Ceramic Ball Bearing cartridge
Compressor side: TRIM 60 A/R 0.60
Turbine side: TRIM 62 A/R 0.64 - T25 / 5-bolts - Wastegated
Bearing housing: Oil & water cooled system
| Turbo Part Number | Model | Turbine side | Compressor side | |||||||
| New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R | |
| 836023-5003S | 466541-5001S | GT2560R | 53.0 | 42.0 | 62 | .64 | 60.0 | 46.5 | 60 | .60 |
Applicable (C.H.R.A.)
| C.H.R.A. Part Number | |
| New Part CHRA | Old Part CHRA |
| 835995-5002S | 446179-5012S |
