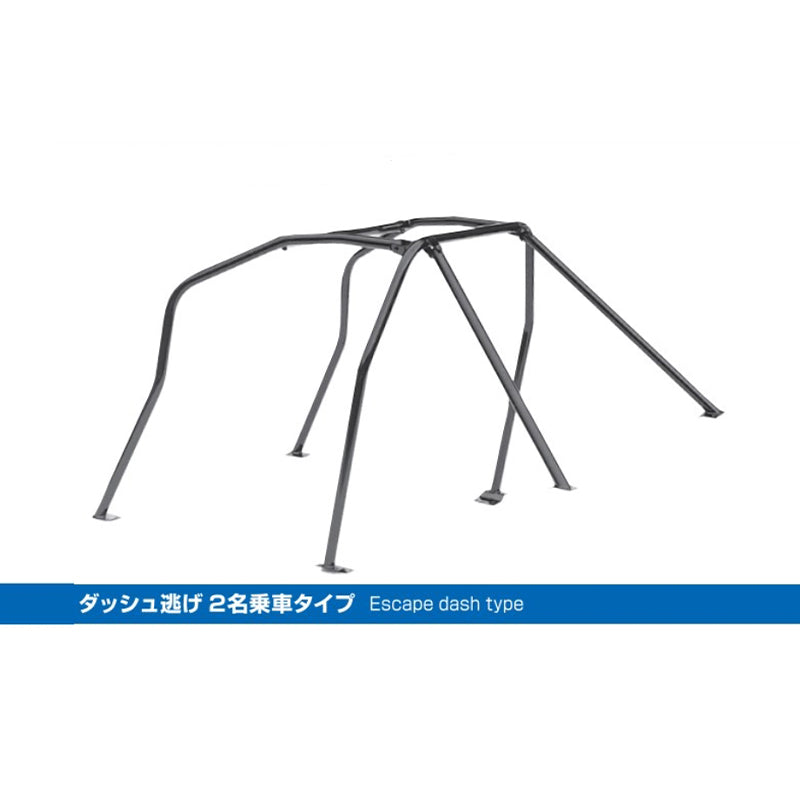

CUSCO 174 270 W12 Roll cage SAFETY 21 (12 point, 2 passenger, escape dash) for TOYOTA Chaser (JZX90)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
CUSCO 174 270 W12 Roll cage SAFETY 21 (12 point, 2 passenger, escape dash) for TOYOTA Chaser (JZX90)
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
The rollcage drastically improves chassis rigidity, improving handling, steering response and overall feedback. Cages also improve safety in case of an accident, especially in high speed situations such as racing competition.
- Made from cold drawn seamless carbon steel
- Variations of types that correspond widely to JAF competition regulations
- Pursuing weight reduction from the entire roll cage to joints
- High rigidity with bending processing that clears JAF domestic safety regulations
- Front cage design that does not obstruct the driver's field of vision
- Body rigidity and safety are further improved by setting the mounting position at the base of the suspension or at a position with high chassis strength.
SPECIFICATIONS:
- Material Steel: Cold drawn seamless carbon steel
- Pipe diameter: 40mm
- Pipe thickness: t=2.0mm
- Mounting plate area/wall thickness: 60m² or more/t=2.6mm
- Reinforcing plate area/wall thickness: 120m² or more/t=3.2mm
