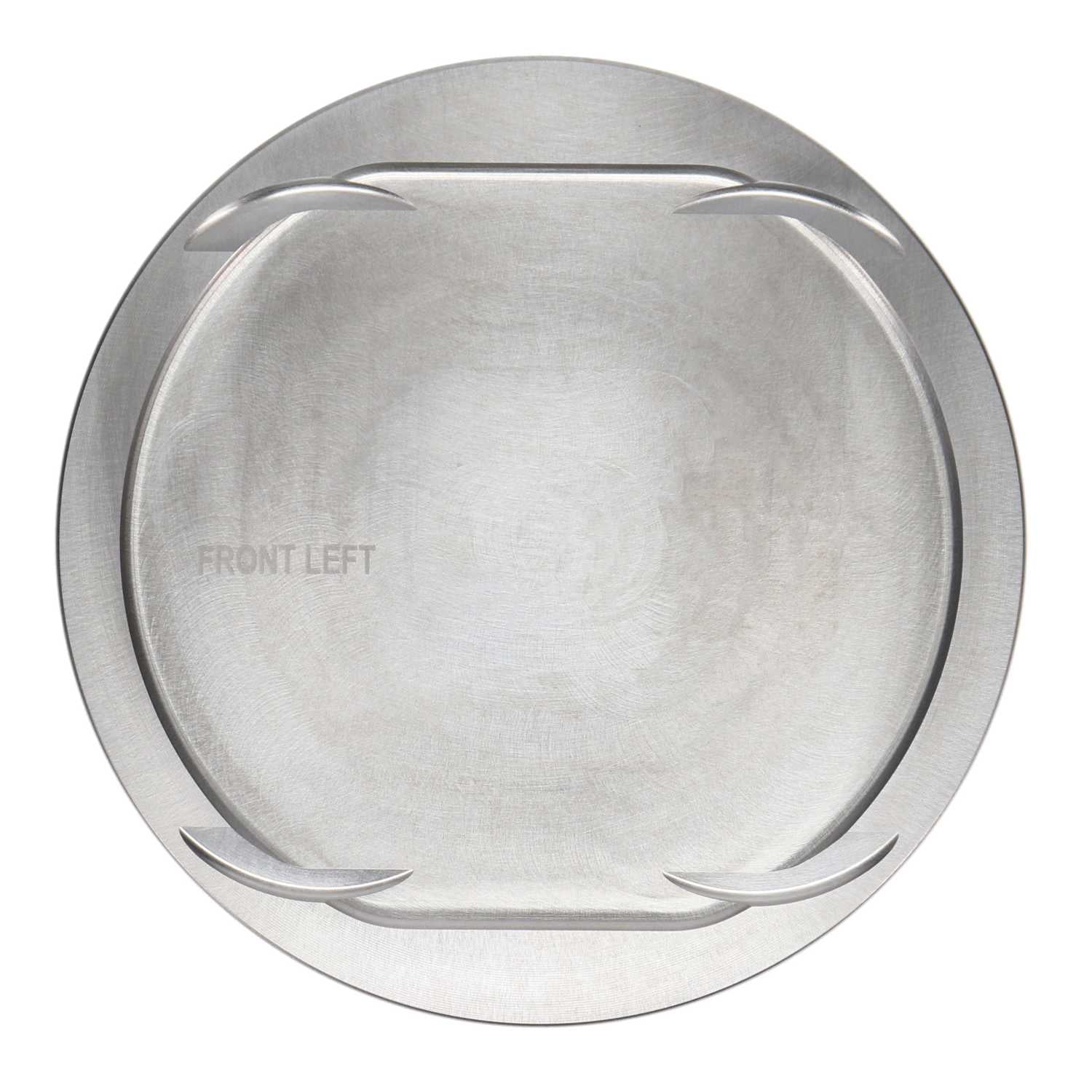

JE 321272 Pistons kit NISSAN GT-R VR38DETT (Set of 6 pic) Bore 95,50 STD Stroke 94,40 CR10.0:1 Photo-0

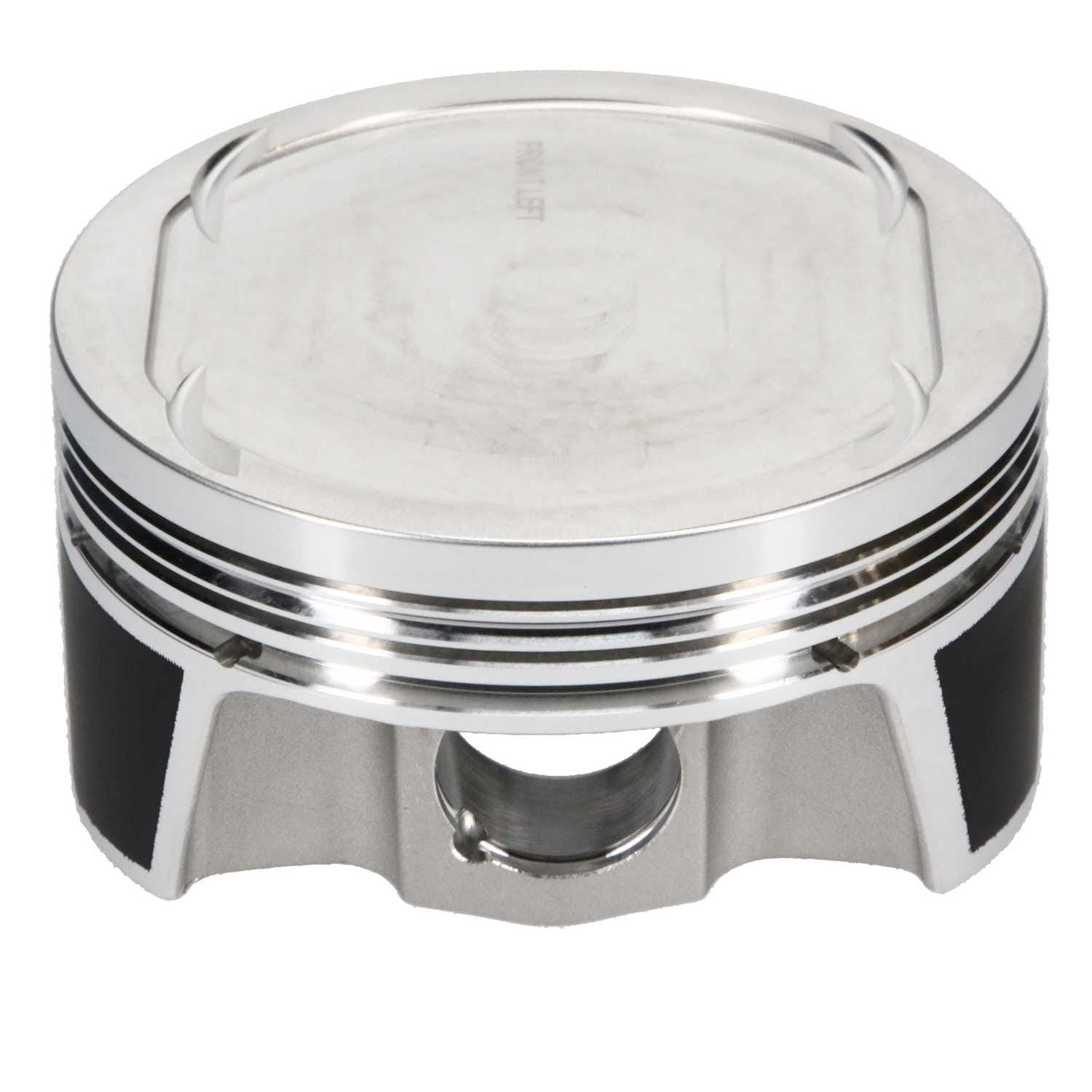

JE 321272 Pistons kit NISSAN GT-R VR38DETT (Set of 6 pic) Bore 95,50 STD Stroke 94,40 CR10.0:1 Photo-1

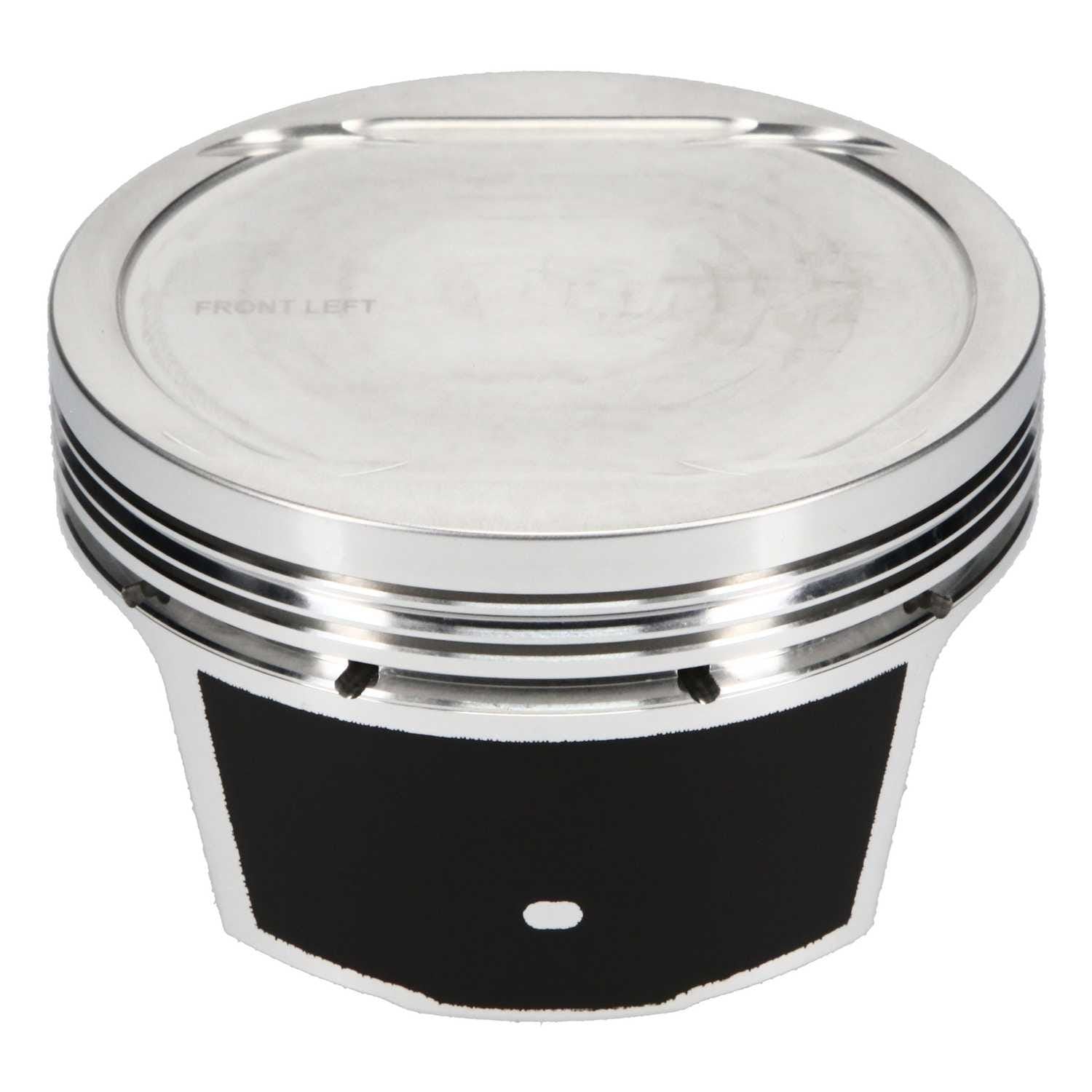

JE 321272 Pistons kit NISSAN GT-R VR38DETT (Set of 6 pic) Bore 95,50 STD Stroke 94,40 CR10.0:1 Photo-2
JE 321272 Pistons kit NISSAN GT-R VR38DETT (Set of 6 pic) Bore 95,50 STD Stroke 94,40 CR10.0:1 Photo-3

JE 321272 Pistons kit NISSAN GT-R VR38DETT (Set of 6 pic) Bore 95,50 STD Stroke 94,40 CR10.0:1

Sale priceAED 6,701.58

Tax included. Shipping calculated at checkout

JE PISTONSP/N: 321272 GTIN: 193564034878
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

JE 321272 Pistons kit NISSAN GT-R VR38DETT (Set of 6 pic) Bore 95,50 STD Stroke 94,40 CR10.0:1

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

DESCRIPTION:

Piston Set, 2618, Flat Top, 3.7598 Bore, 1.232 CD, 0.905, Pin Dia, Set of 6.







Bore (in) 3.76
Bore (mm) 95.5
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -3.20
Series JE Pistons
Piston Head Type Flat Top
Pin Diameter (IN) 0.905
Compression Height 1.232
Make NISSAN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.210
Ringset Part Number JG1001-3760
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.073
Retainer Lock Style Wire Lock
Retainer Lock Part Number 905-073-MW
Retainer Diameter (IN) 0.905
Replaced By 313342
Piston Pin Inside Diameter 0.485
Piston Pin Material 9310 NICKEL CARBON STEEL ALLOY
Piston Material 2618
Piston Pin Length (IN) 2.250
Piston Avg Wt 412
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 905-2250-21-93C
Pin Included Yes
Pin Diameter (mm) 23.00
Oil Rail Support Included No
Deck Clearance -0.010
Brand JE Pistons
